点击放大查看

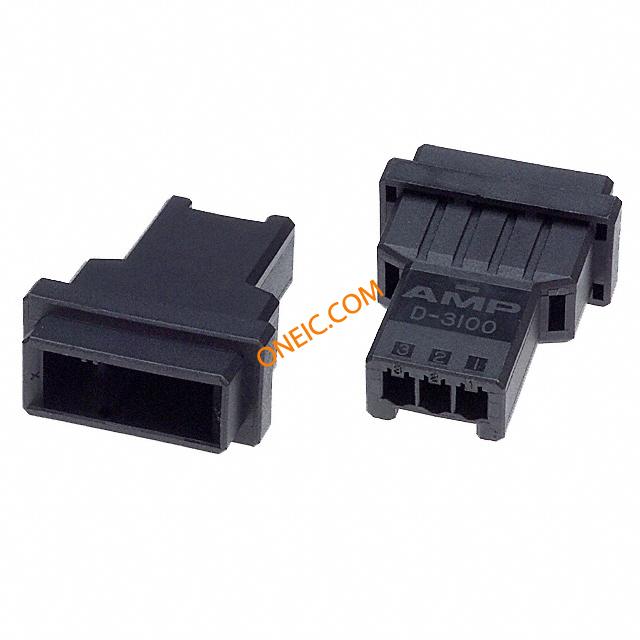

1-177648-3
| 制造商 | |
| 描述 | Conn Housing M 3 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 3POS KEY-X Heavy Duty Power Connectors HOUSING TAB 3 POS KEY-X Conn Housing M 3 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 3Mount = Free HangingSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Serie D3100S DYNAMIC W-T-W TAB HSG |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 额定交流电压 | 250 |
| 介电强度 | :1500V/m | 最大额定电流 | :15A |
| 最大触点电流 | :12A | 绝缘电阻 | :10mohm |
机械参数
| 颜色 | Black | 间距 | 3.81 mm |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 导线线规 | 16 AWG | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 排数 | 1 |
| 封装形式 | :PBT / Nylon 66 UL94V-0 | 壳体材料 | Nylon |
| 包装数量 | Bag | 端接样式 | Pin |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | L Fitting 900121-2 is used to secure housing onto panel. | 类型 | Housing |
| 连接器性别 | M | 系列 | D-3100S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | :D-3100S Dynamic Series Connectors |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
917485-3
te connectivity / amp
Conn Contact M 1 POS Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 14-16AWG CRIMP 30GOLD Headers & Wire Housings RCPT 16-14 AWG 30 AU Dynamic Series Connectors Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 TAB CONT. 2L 16-14

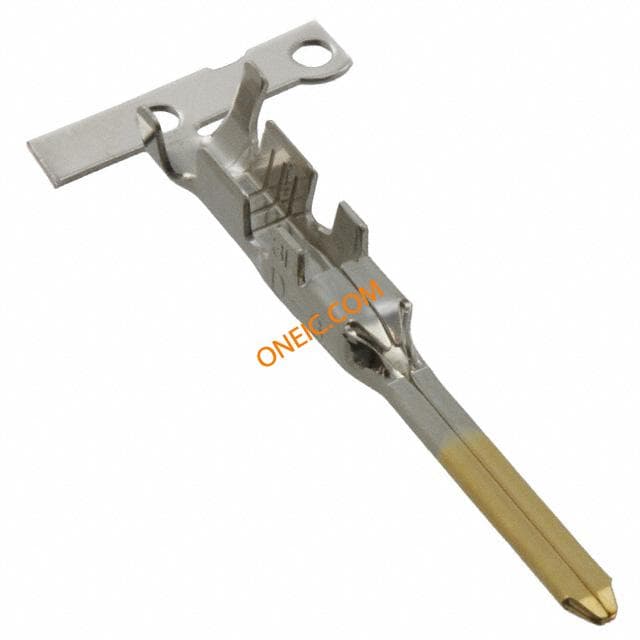

353716-2
