1-178288-3
| 制造商 | |
| 描述 | Conn Housing RCP 3 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 3.81 3POS KEY-X Heavy Duty Power Connectors 3P RCPT HSG Conn Housing RCP 3 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 3KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, NYLON, 3WAY CASEKIT&PLUGHSG,DYNAMIC3100RECHSG3P(SGL) Connector: wire-board; D-3100S; plug; female; w/o terminals; PIN:3 DYNAMIC 3100 REC HSG 3P (SGL) |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 额定交流电压 | 250 |
| 最大额定电流 | 10/Contact A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 22.8 mm |
| 间距 | 3.81 mm | 宽度 | :26.76mm |
| 高度 | 7.15 mm | 长度 | :7.15mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 16 AWG | 触头类型 | Female Socket |
| 柱间距 | 3.81mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | for cable | 排数 | 1 |
| 插入力 | Female | 壳体材料 | Nylon |
| 总长度 | 26.76 mm | 包装数量 | Bag |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 连接器颜色 | :Black | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3100S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 产品子类型 | Housing |
| 适配器系列 | D-3100S | 连接类型 | Wire |
| 单元数量 | 1 | 适用产品/相关产品 | :D-3000 Series Socket Contacts |
环境参数
| 工作温度 | -55C to 105C | ||
相关型号

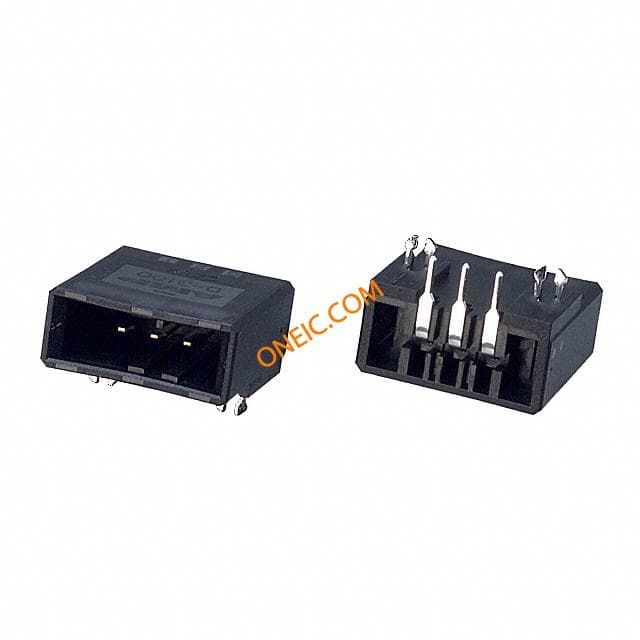

1-178293-2
te connectivity / amp
Conn Power M 3 POS 3.81mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS R/A KEY-X 15GOLD D-3000 3 Male Right Angle Heavy Duty Power Connector, Through Hole,250V ac Heavy Duty Power Connectors DYNAMIC 3100 HDR H 3 Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardConnectorConnector Type = Header - TabContact Type = TabTabSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz3wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 3路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3100 HDR H 3P ASSY
1-917484-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Heavy Duty Power Connectors REC CONT 2L 16-14 Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 2L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 2L 16-14

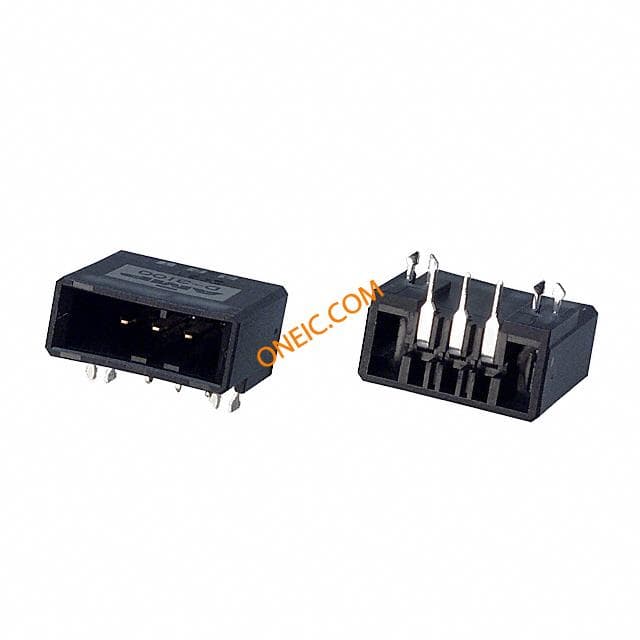

1-178293-3
te connectivity / amp
Conn Power M 3 POS 3.81mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS R/A KEY-X 30GOLD D-3000 3 Male Right Angle Heavy Duty Power Connector, Through Hole 12A,250V ac Heavy Duty Power Connectors HDR 3 POS R/A 30 AU KEY-X Conn Power M 3 POS 3.81mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz3wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 3路 直角 PCB 针座, 焊接端接, 12A , 通孔 DYNAMIC 3100 HDR H 3P ASSY

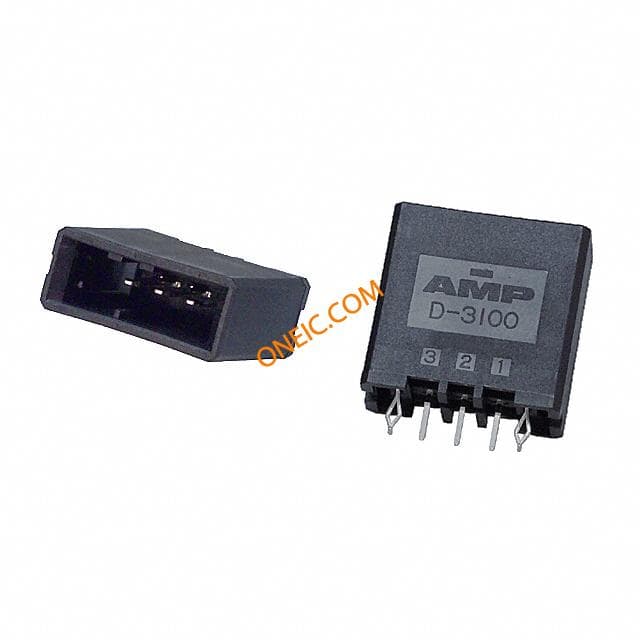

1-178313-5
te connectivity / amp
Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS VERT KEY-X TIN D-3000 3 Male Straight Heavy Duty Power Connector, Through Hole 12A,250V ac Heavy Duty Power Connectors 3P HEADER ASSY Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONNECTOR, HEADER, THT, D-3100S, 3WAY HEADERVERT3WAYTAB Connector: wire-board; D-3100S; socket; male; straight; PIN:3; 250V TE Connectivity Dynamic 3000 系列 3路 3.81mm节距 直 PCB 针座 , 焊接端接, 12A, 通孔 DYNAMIC 3100 HDR V 3P ASSY
1-175196-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Contact,female,crimp,20-16AWG,D-3 Headers & Wire Housings DYNAMIC D-3 REC CONT 1-175196-5 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, AWG20-16 CONTACT, CRIMP, SOCKET, 20-16AWG, REEL TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 REC CONT/L PRE-TIN
1-175195-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 20-24AWG CRIMP 15GOLD Contact female crimp 24-20AWG Au M D-3 Headers & Wire Housings REC CONT/M AU 0.38 Dynamic Series Connectors Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/M AU 0.38
1-175217-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 20-24AWG CRIMP 30GOLD Contact,female,crimp,24-20AWG,D-3 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金镀镍触点 DYNAMIC REC CONTACT M L/P
175216-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 30GOLD Contact female crimp 28-24AWG Au S D-3 Headers & Wire Housings RCPT 28-24 AWG 30 AU CRIMP STD INSERT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp28-24AWGAuSD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P
1-353715-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 3L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 16-14AWG TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 3L 16-14
1-353717-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Contact female crimp 16-14AWG Au 3L D-3 Heavy Duty Power Connectors REC L/P 3L 16-14 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, 16-14AWG, CRIMP Contactfemalecrimp16-14AWGAu3LD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC L/P 3L 16-14
1-175196-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP 30GOLD Contact female crimp 20-16AWG Au L D-3 Headers & Wire Housings CONTACT RCPT GOLD Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp20-16AWGAuLD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/L AU 0.76

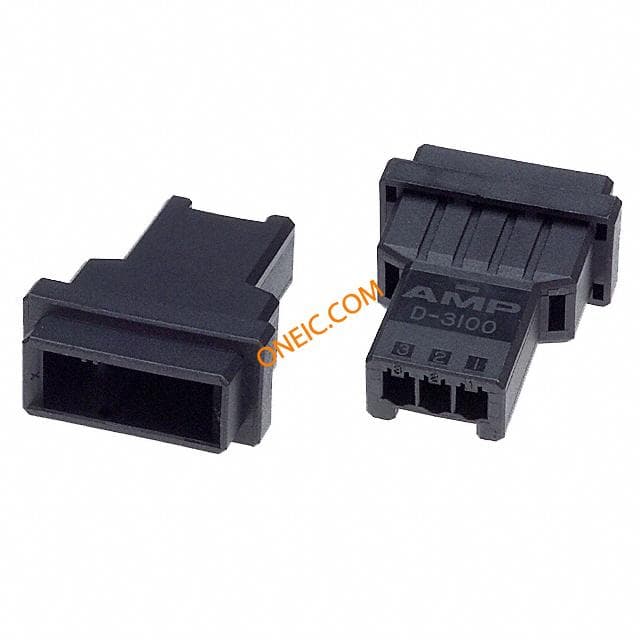

1-177648-3
te connectivity / amp
Conn Housing M 3 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 3POS KEY-X Heavy Duty Power Connectors HOUSING TAB 3 POS KEY-X Conn Housing M 3 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 3Mount = Free HangingSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Serie D3100S DYNAMIC W-T-W TAB HSG

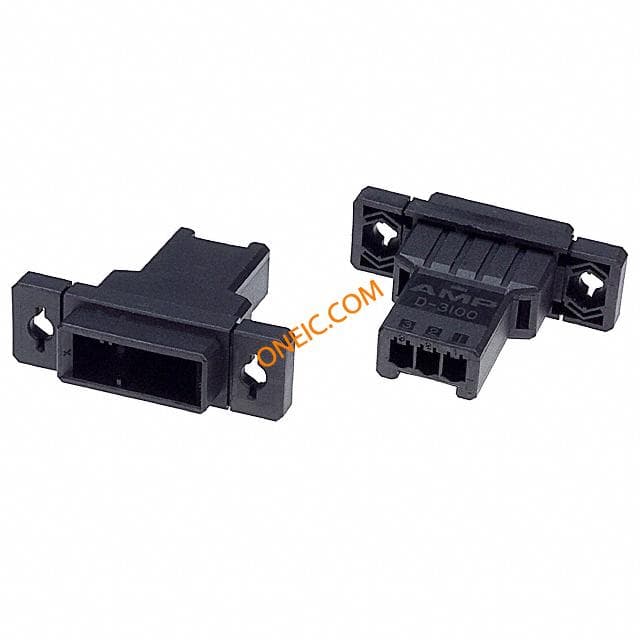

1-178802-3
te connectivity / amp
Conn Housing PL 3 POS 3.81mm Crimp ST Panel Mount Bag Dynamic Series Connectors CONN HOUSING TAB 3POS KEY-X PNL Housing PM 3 way TAB 3.81mm X key D-3 Heavy Duty Power Connectors 3P PLUG HOUSING Conn Housing PL 3 POS 3.81mm Crimp ST Panel Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 3Mount = Panel MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Serie HousingPM3wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 1 行 3.81mm 节距 3 路 直 公 电缆安装 PCB 壳体 DYNAMIC3100S TAB HSG 3P PM X-K
1-175218-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Heavy Duty Power Connectors CONTACT RCPT TIN Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CRIMP SOCKET, 16-20AWG DYNAMICPOSTHEADER,3.81DYNAMICRECLLPTN20-16 Contact; female; 0.5÷1.4mm2; D-3; tinned; crimped, on cable 3.81 DYNAMIC REC L LP TN 20-16
1-917484-3
te connectivity / amp
Conn Contact F 1 POS Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Headers & Wire Housings RECPT 16-14 AWG Contact SKT Crimp ST Cable Mount Reel Contact SKT Crimp ST Cable Mount Reel Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 REC CONT 2L 16-14

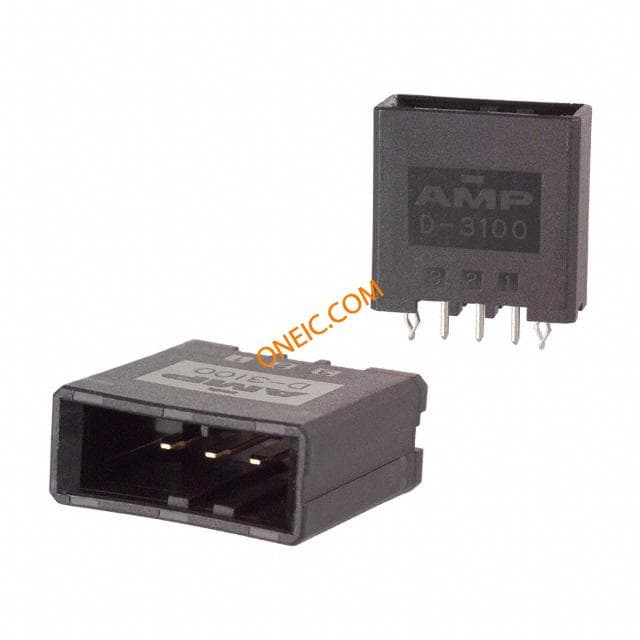

1-178313-2
te connectivity / amp
Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS VERT KEY-X 15GOLD D-3000 3 Male Straight Heavy Duty Power Connector, Through Hole,250V ac Heavy Duty Power Connectors HDR 3 POS VERT 15 AU KEY-X Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONNECTOR, HEADER, THT, D-3100S, 3WAY Headervert3wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 3路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3100 HDR V 3P ASSY
175216-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 15GOLD Contact,receptacle,crimp,28-24AWG,D-3 Heavy Duty Power Connectors D3100 CONTACT SKT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 28-24AWG CONTACT,REC,CRIMP TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P
353715-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 3L D-3 Headers & Wire Housings RECPT 16-14 AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp16-14AWGAu3LD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 3L 16-14
1-178313-3
te connectivity / amp
Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS VERT KEY-X 30GOLD D-3000 3 Male Straight Heavy Duty Power Connector, Through Hole 12A,250V ac Heavy Duty Power Connectors HDR 3 POS VERT 30 AU KEY-X Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardConnectorConnector Type = Header - TabContact Type = TabTabSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert3wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 3路 直 PCB 针座, 焊接端接, 12A , 通孔 DYNAMIC 3100 HDR V 3P ASSY

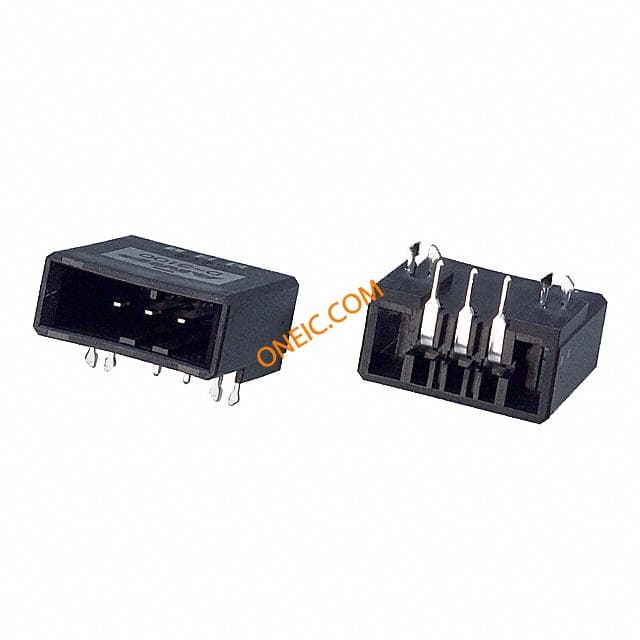

1-178293-5
