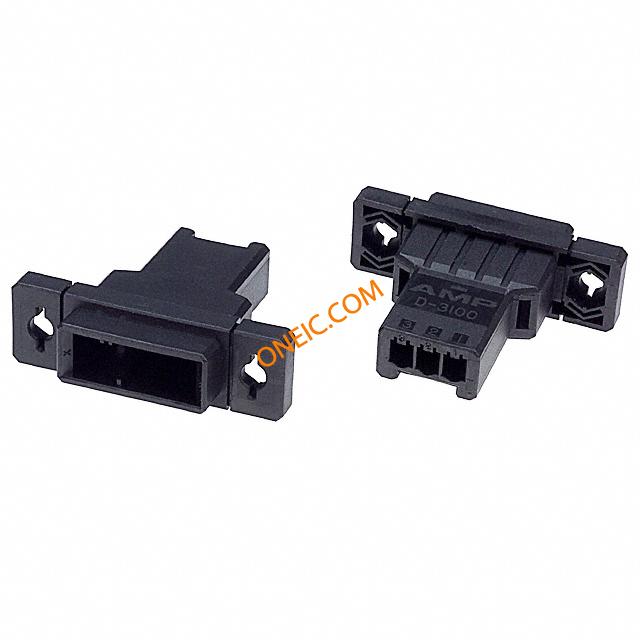

1-178802-3
| 制造商 | |
| 描述 | Conn Housing PL 3 POS 3.81mm Crimp ST Panel Mount Bag Dynamic Series Connectors CONN HOUSING TAB 3POS KEY-X PNL Housing PM 3 way TAB 3.81mm X key D-3 Heavy Duty Power Connectors 3P PLUG HOUSING Conn Housing PL 3 POS 3.81mm Crimp ST Panel Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 3Mount = Panel MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Serie HousingPM3wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 1 行 3.81mm 节距 3 路 直 公 电缆安装 PCB 壳体 DYNAMIC3100S TAB HSG 3P PM X-K |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, TUV, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 VAC | 额定交流电压 | 250 |
| 介电强度 | :1500V/m | 最大额定电流 | :15A |
| 最大触点电流 | :12A | 绝缘电阻 | :10mohm |
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 3.81 mm | 宽度 | 12.7mm |
| 长度 | 40mm | 重量 | 0.1 |
| 包装方式 | Bulk | 导线线规 | 16 AWG |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 安装样式 | CableMount | 排数 | 1 |
| 封装形式 | :PBT / Nylon 66 UL94V-0 | 壳体材料 | Nylon |
| 包装数量 | Bag | 主要材料 | Connector |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Housing is secured onto panel by push rivet | 类型 | Housing |
| 连接器性别 | PL | 系列 | D-3100S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Housing | 连接类型 | Wire |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
