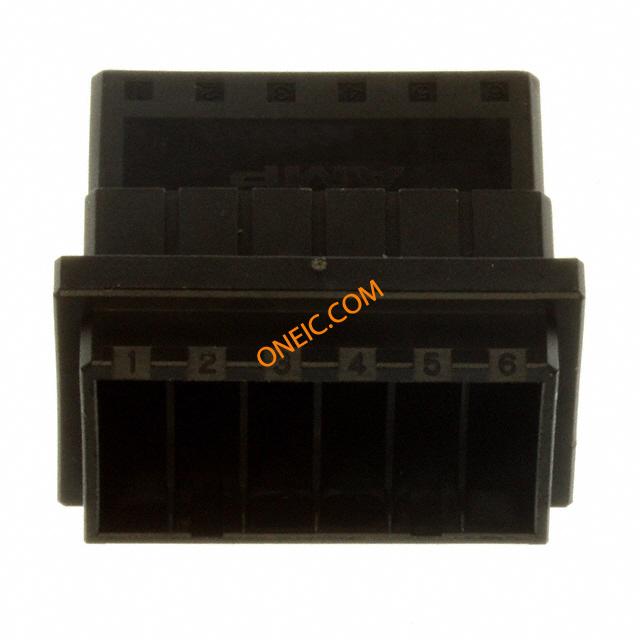

917242-6
| 制造商 | |
| 描述 | Conn Housing M 12 POS 5.08mm Crimp ST Cable Mount Bag CONN HOUSING TAB 12POS DUAL FREE Housing,FH,12w,Tab,5.08mm,D-3 Conn Housing M 12 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:ConnectorHousing Gender = ReceptacleWithout ContactsAccepts Contact Gender = TabTerminate To WireSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 12 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3500 WTW TAB HSG 12P |
| 分类 |
商业参数
| 其他名称 | A29678 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | 是 | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 5.08 mm | 宽度 | 21.52mm |

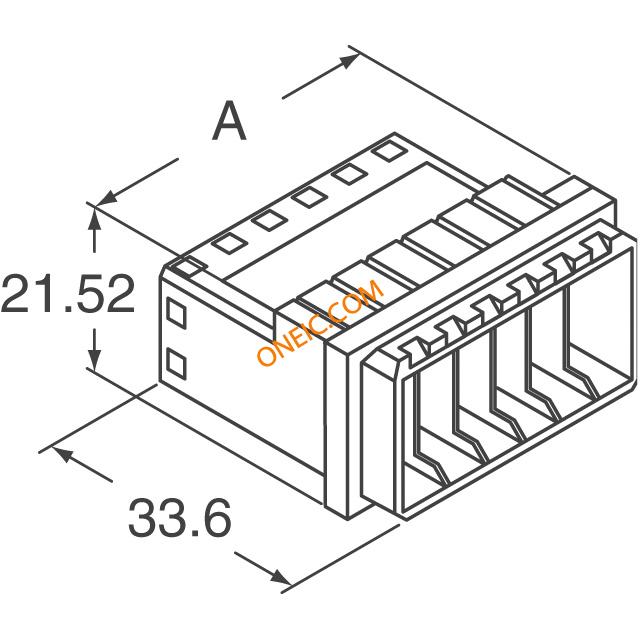

| 高度 | 33.6 mm [ 1.322 in ] | 长度 | 36.43mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Tab |
| 安装类型 | Straight | 连接器类型 | Plug |
| 安装样式 | CableMount | 排数 | 2 |
| 插入力 | 9.8 牛顿 | 壳体材料 | Nylon |
| 包装数量 | 150 | 面板安装类型 | 不带 |
| 主要材料 | Connector | 端接样式 | 公端 |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 兼容外壳尺寸（如TM-700等） | 母端护套 |
| 典型触点布局 | 网络 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | 系列 | D-3000 |
| 可密封 | 否 | 制造商全称 | D-3000Series |
| 预装 | 否 | 产品子类型 | 连接器 |
| 选择性装载 | No | 其他规格 | Without |
| 适用产品/相关产品 | Sensor Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
