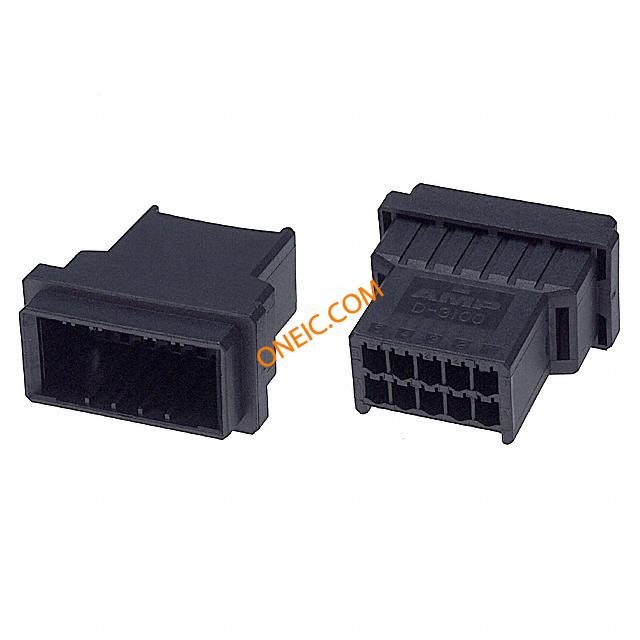

178964-5
| 制造商 | |
| 描述 | Conn Housing M 10 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 10POS DUAL FREE Housing FH 10 way 2 row TAB 3.81mm D-3 Headers & Wire Housings 10 POS HOUSING TAB DUAL Conn Housing M 10 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 10Mount = Free HangingSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HousingFH10way2rowTAB3.81mmD-3 TE Connectivity Dynamic 3000 系列 2 行 3.81mm 节距 10 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3 W-T-W TAB HSG 10P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 开关功能 | Unlatched |
| 供电电压 | 250 | 额定交流电压 | 250 |
| 最大额定电流 | 3 A | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 3.81 mm | 宽度 | 17.78mm |
| 高度 | 33.6 mm [ 1.322 in ] | 长度 | 33.19mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 安装样式 | CableMount |
| 排数 | 2 | 壳体材料 | Nylon |
| 包装数量 | Bag | 面板安装类型 | 不带 |
| 主要材料 | Connector | 端接样式 | 公端 |
| 第一触头极性 | Pin (Male) | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
| 兼容外壳尺寸（如TM-700等） | 母端护套 | 典型触点布局 | 网络 |
产品信息
| 备注 | L Fitting 900121-4 is used to secure housing onto panel. | 类型 | Housing |
| 连接器性别 | M | 系列 | D-3100D |
| 可密封 | 否 | 编码、键控 | No |
| 制造商全称 | D-3000Series | 预装 | 否 |
| 产品子类型 | Housing | 连接类型 | Wire |
| 选择性装载 | No | 其他规格 | Without |
| 应用细节 | Wire-to-Wire | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
