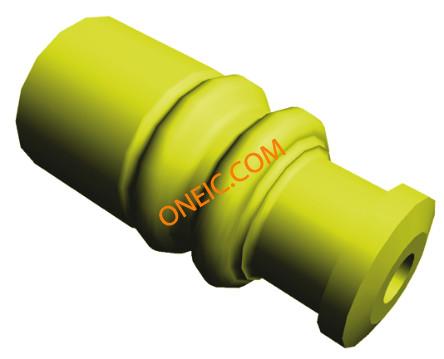

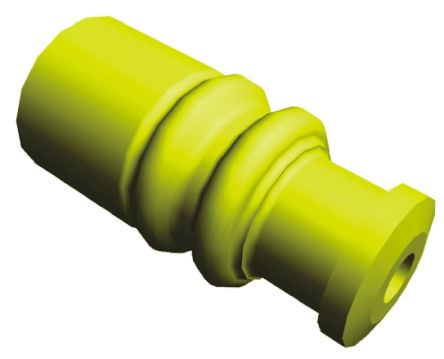

点击放大查看
900324-4
| 制造商 | |
| 描述 | Connector Accessories Seal Protector Straight Silicon Rubber Dark Yellow Green Econoseal III 070 RUBBER PLUG S Econoseal III yellow wire seal Automotive Connectors 070 RUBBER PLUG S Connector Accessories Seal Protector Straight Silicon Rubber Dark Yellow Green Product Highlights:Seal ProtectorColor = Dark Yellow GreenWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.90 mmProduct Series = 070Search Keywords:automotive, sealed, wire-to-wire, and wire-to-pc board, polarized mating, discrete cable sealing, tree clip, tree, christmas tree, fixation clip EconosealIIIyellowwireseal TE Connectivity 070 系列 封条保护器, 使用于汽车连接器 |
| 分类 |
商业参数
| 产品 | Accessories | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | 无 |
电气参数
| 电阻 | 较差 | ||
机械参数
| 颜色 | Yellow Green | 硬度 | 50 |
| 材料（通用） | 硅胶 | 包装方式 | Bulk |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 材料表面处理 | 是 | 内径（直径） | 4.4 mm [ .173 in ] |
| 外径 | 1.4 – 1.9 mm [ .055 – .075 in ] | 位数 | 1 |
产品信息
| 类型 | Seal Protector | 连接器性别 | Male |
| 系列 | 070 | 附件类型 | Wire Seal |
| 射频系列/标准 | 900324 | 适用产品/相关产品 | EconoSeal Series J |
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -40 – 130 °C [ -40 – 266 °F ] |
