点击放大查看

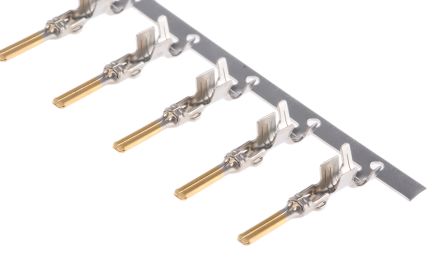

171661-2
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONN TAB 20-16AWG GOLD Econoseal J Mk II crimp tab contact Automotive Connectors PIN 20-16 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Contact Type = TabWire Insulation Diameter = 2.00 - 2.59 mmBrass Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip TE Connectivity E-J MK-2 070 TAB CONT |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | 连接器类型 - 电压输入 | Crimp |
机械参数
| 腔体A | 10 | 锁定类型 | 无尖刃主体 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 铜 |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Crimp |
| 插针或插孔 | Tab | 连接器类型 | Connector Power |
| 接触镀层 | Gold | 安装样式 | Wire |
| 触头材料 | Brass | 包装数量 | 6000 |
| 端接排数 | 压接 | 接触件端接 | Crimp |
| 绝缘直径 | 2 – 2.5 mm [ .078 – .102 in ] | 接触件表面处理 - 配合 | 金 (Au) |
| 法兰上方插针尺寸 | 1.8 mm [ .071 in ] | ||
产品信息
| 连接器性别 | PIN | 系列 | J-MarkII |
| 可密封 | 是 | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -22 – 221 |
