点击放大查看

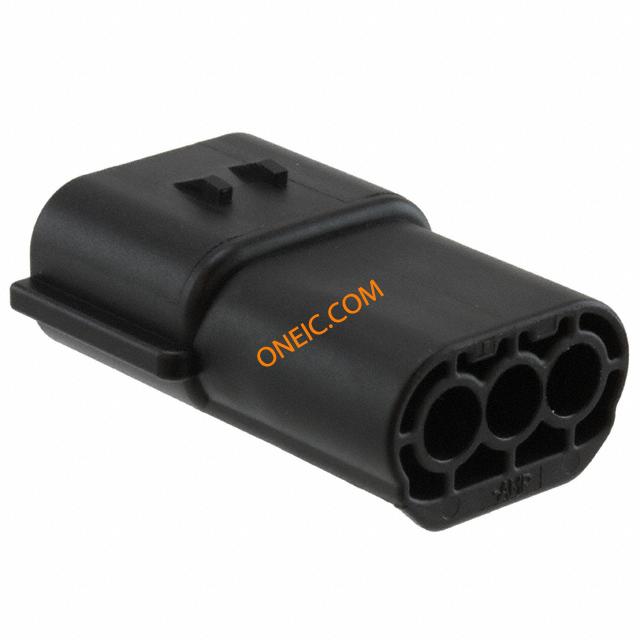

174359-2
| 制造商 | |
| 描述 | Conn Housing RCP 3 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN CAP HOUSING 3POS BLACK 3 W Econoseal J Mk II receptacle housing Automotive Connectors 3P CAP HOUSING Conn Housing RCP 3 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 3Housing Type = Receptacle (Cap)Polyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip RECEPTACLE HOUSING, 3 WAY 3WEconosealJMkIIreceptaclehousing TE Connectivity Econoseal J Mk II+ 系列 3路 黑色 母 外壳 070 ECONOSEAL MARK-2 CAP 3P |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Econoseal J Series | ||
机械参数
| 颜色 | Black | 深度 | 32.5mm |
| 间距 | 4.8 mm | 宽度 | 23.1mm |
| 高度 | 13.9mm | 重量 | 3.7 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 端接方式 | DoubleLock | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 安装样式 | PCB | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PBT |
| 总长度 | 23.1 mm | 主要材料 | Receptacle |
| 连接器颜色 | Black | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Econseal J |
| 产品特性 | Econoseal J Series | CAD图纸 | 3D CAD Model |
| 制造商全称 | EconosealJMarkII(+)Series | ||
