点击放大查看

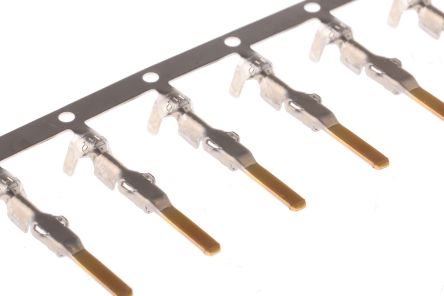

171631-2
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONTACT TAB CRIMP 20-24AWG GOLD 070 Contact,tab,0.20-0.60mm² Heavy Duty Power Connectors J-MARK TAB 24-20AWG Econoseal J Series [Mark II (+)] Product Highlights:ContactWire Range = 0.20-0.60² [24-20] mm [AWG]Contact Type = TabWire Insulation Diameter = 1.40 - 2.41 mmBrass Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip 070Contact,tab,0.20-0.60mm² Econoseal J 20-24AWG Crimp Contact TE Connectivity Econoseal J [Mark II (+)] 系列 触点 070 TAB CONT GOLD |
| 分类 |
商业参数
| 标准包装规格 | 6,000 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输出端 | 0 – 24 A (Low Power) | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 铜 |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 锁定特性 | Clean Body | 触头材料 | Brass |
| 包装数量 | 6000 | 端接排数 | 压接 |
| 端接样式 | Wire | 触点数 | 1 |
| 接触件端接 | Crimp | 绝缘直径 | 1.4 – 2.4 mm [ .055 – .094 in ] |
| 法兰上方插针尺寸 | 1.8 mm [ .07 in ] | 线规或范围 - AWG | 20, 21, 22, 23 |
产品信息
| 连接器性别 | PIN | 系列 | 171 |
| 可密封 | 是 | 附件类型 | Contact |
| 其他规格 | 6 | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
文档与媒体
