174984-2
| 制造商 | |

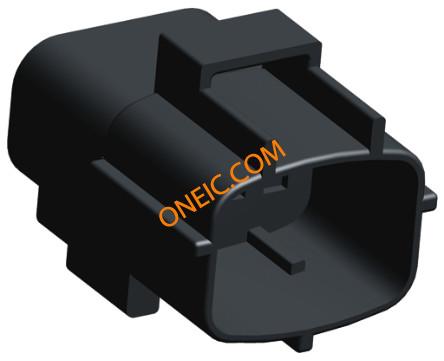

| 描述 | Conn Housing RCP 8 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN CAP HOUSING 8POS BLACK 8 W Econoseal J Mk II receptacle housing Automotive Connectors 8 POS CAP Conn Housing RCP 8 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 8Housing Type = Receptacle (Cap)Polyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip 8WEconosealJMkIIreceptaclehousing TE Connectivity Econoseal J Mk II+ 系列 2行 8路 黑色 母 外壳 8 POS. CAP MK II+ |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 供电电压 | 12 | 标称电压 | 12 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | Black | 深度 | 36.5mm |
| 间距 | 4.8 mm | 宽度 | 27.9mm |
| 高度 | 30.7mm | 长度 | 36.5 mm [ 1.437 in ] |
| 锁定类型 | 外壳集成 | 包装方式 | Bulk |
| 出线方向 | 否 | 导线线规 | 16-24 AWG |
| 排间距 | 0.220" (5.60mm) | 端接方式 | DoubleLock |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | PBT | 总长度 | 27.9 mm |
| 安装特性 | 是 | 包装数量 | 100 |
| 主要材料 | Receptacle | 连接器间距 | .1, .327, .421 |
| 连接器颜色 | Black | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 连接器/触点类型 | 否 | 接触件表面处理 - 配合 | 是 |
| 法兰上方插针尺寸 | 1.8 mm [ .071 in ] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Econoseal J Mk II+ |
| 极性 | 是 | 可密封 | 是 |
| 可维修 | 是 | 制造商全称 | EconosealJMarkII(+)Series |
| 应用细节 | Signal | ||
环境参数
| 防护等级 | 其他 | 工作温度 | -30C to 105C |
