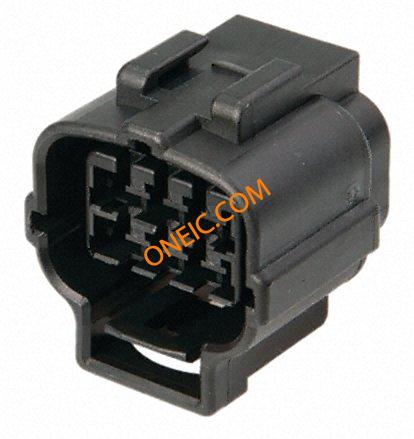

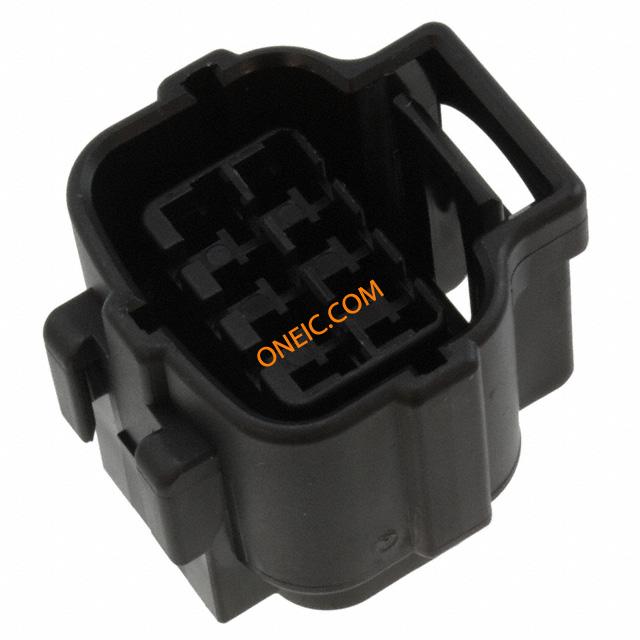

174982-2
| 制造商 | |
| 描述 | Conn Housing PL 8 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN PLUG HOUSING 8POS BLACK 8 way Econoseal J Mk II plug housing Automotive Connectors 8 POS PLUG MKII+ Conn Housing PL 8 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 8Housing Type = PlugPolyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip HOUSING, PLUG, ECONOSEAL J, 8WAY 8wayEconosealJMkIIplughousing |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 间距 | 4.8 mm | 宽度 | 31mm |
| 高度 | 33.2mm | 重量 | 0.02 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 排间距 | 0.220" (5.60mm) | 端接方式 | Crimp |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 安装样式 | Wire | 排数 | 2 |
| 锁定特性 | :Latch | 本体材料 | :PBT (Polybutylene Terephthalate) |
| 壳体材料 | PBT | 总长度 | 31 mm |
| 主要材料 | Connector | 端接样式 | Crimp |
| 连接器颜色 | Black | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Econoseal J 070 |
| 产品特性 | Econoseal J Series | 制造商全称 | EconosealJMarkII(+)Series |
| 适用产品/相关产品 | :Econoseal Mark II+ Contacts, Double Lock Plates | ||
环境参数
| 工作温度 | -30C to 105C | ||
