点击放大查看

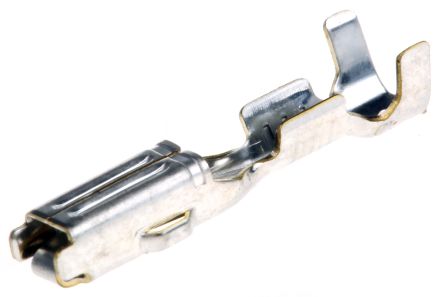

171699-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Econoseal J Series [Mark II (+)] CONTACT TAB CRIMP 20-24AWG TIN Econoseal J Mk II crimp socket contact Automotive Connectors 070 TYPE LOOSE PIECE REC CONT 171699-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 0.20-0.60² [24-20] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 1.40 - 2.41 mmBrass Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip EconosealJMkIIcrimpsocketcontact TE Connectivity Econoseal J 070 Mk II 系列 母 压接接线端子, 压接, 镀锡触点 070 TYPE LOOSE PIECE REC CONT |
| 分类 |
商业参数
| 产品 | Contacts | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输出端 | 0 – 24 A (Low Power) | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | 铜 |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 电缆直径 | 0.5mm² | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 连接器样式 | 180° | 锁定特性 | Clean Body |
| 触头材料 | Brass | 包装数量 | 1000 |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 接触件端接 | Crimp | 绝缘直径 | 1.5 – 2.2 mm [ .055 – .094 in ] |
| 位数 | 1 | 接触件表面处理 - 配合 | 锡 (Sn) |
| 法兰上方插针尺寸 | 1.8 mm [ .07 in ] | 线规或范围 - AWG | 24-20 |
产品信息
| 连接器性别 | SKT | 系列 | 070 |
| 可密封 | 是 | 其他规格 | 6 |
| 适用产品/相关产品 | AutomotiveConnector | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | +105°C |
| 可用温度范围 | -30to+105°C | 结工作温度 | 105°C |
