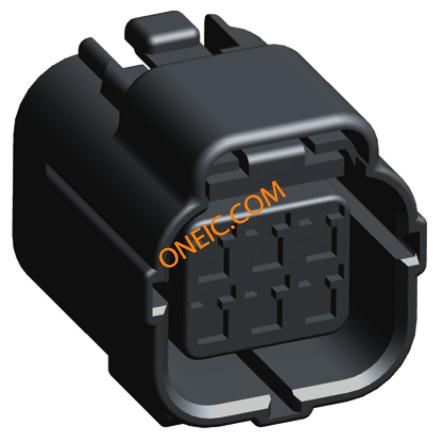

174262-2
| 制造商 | |
| 描述 | Conn Housing PL 6 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN PLUG HOUSING 6POS BLACK 6 way Econoseal J Mk II plug housing Automotive Connectors ECONO-J MK-2 PLUG AS Conn Housing PL 6 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 6Housing Type = PlugPolyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip PLUG ASSEMBLY, 6 WAY 6wayEconosealJMkIIplughousing |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 间距 | 4.8 mm | 宽度 | 25.4mm |
| 高度 | 29.3mm | 重量 | 0.03 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 排间距 | 0.220" (5.60mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | PBT |
| 总长度 | 25.4 mm | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 连接器颜色 | Black |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Econoseal J 070 |
环境参数
| 工作温度 | -30C to 105C | ||
