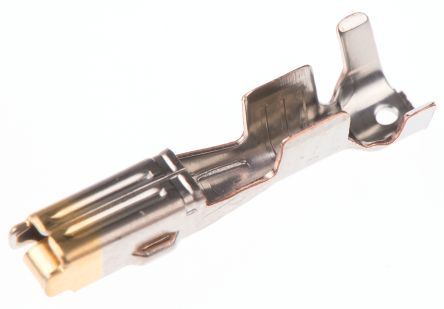

171662-5
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONN RCPT 20-16AWG GOLD Econoseal J Mk II crimp socket contact Automotive Connectors E-J MK-2 070 USA REV A ONLY Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 2.00 - 2.59 mmPhosphor Bronze Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip EconosealJMkIIcrimpsocketcontact TE Connectivity E-J MK-2 070 USA REV A ONLY |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | ||
机械参数
| 深度 | 5.4 mm | 间距 | Not Required mm |
| 高度 | 3.6 mm | 腔体A | 10 |
| 锁定类型 | 无尖刃主体 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 铜 | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 安装样式 | Wire | 连接器样式 | 180° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 16.5 mm | 包装数量 | 6000 |
| 主要材料 | AutomotiveConnectorAccessory | 端接排数 | 压接 |
| 端接样式 | Crimp | 触点数 | 1 POS |
| 接触件端接 | Crimp | 绝缘直径 | 2 – 2.5 mm [ .078 – .102 in ] |
| 接触件表面处理 - 配合 | 锡 (Sn) | 法兰上方插针尺寸 | 1.8 mm [ .071 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - AWG | 20 to 16 |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | Econoseal J 070 | 可密封 | 是 |
| 制造商全称 | EconosealJMarkII(+)Series | 端口数 | 1 Port |
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -22 – 221 |
文档与媒体
