点击放大查看

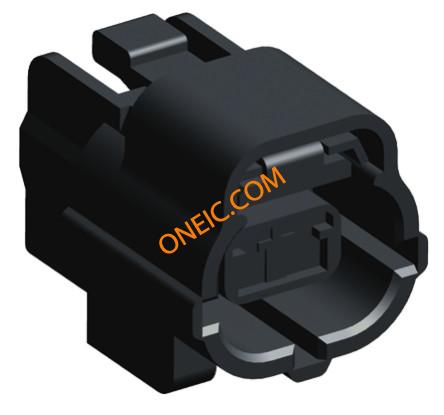

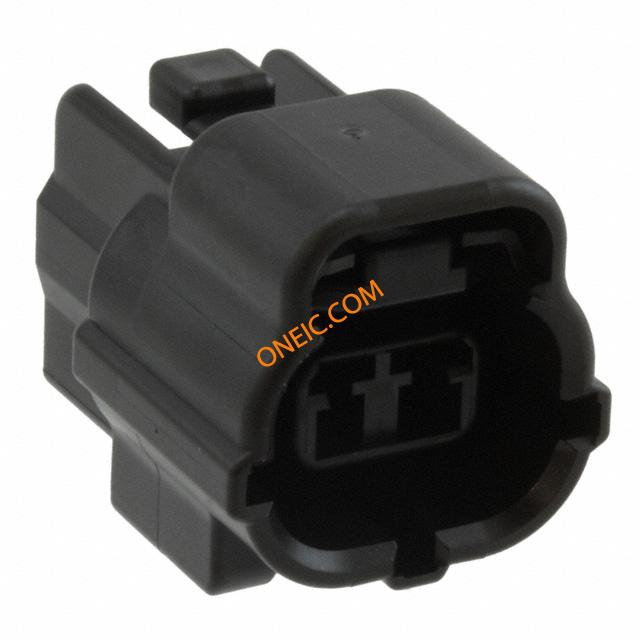

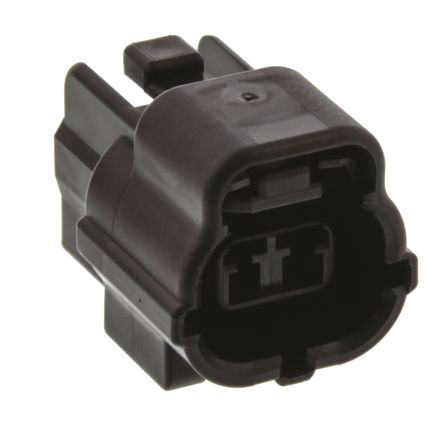

174352-2
| 制造商 | |
| 描述 | Conn Housing PL 2 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN PLUG HOUSING 2POS BLACK 2 way Econoseal J Mk II plug housing Automotive Connectors 2P ECONOSEAL PLUG Conn Housing PL 2 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 2Housing Type = PlugPolyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip HOUSING, ECONOSEAL, 2WAY 2wayEconosealJMkIIplughousing TE Connectivity Econoseal J Mk II+ 系列 2路 黑色 公 外壳 070 ECONOSEAL MARK-2 PLUG 2P |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Econoseal J Series | ||
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 间距 | 4.8 mm | 宽度 | 20.6mm |
| 高度 | 22.8mm | 重量 | 0.004 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 端接方式 | Crimp | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | :- |
| 安装样式 | PCB | 排数 | 1 |
| 壳体材料 | PBT | 总长度 | 20.6 mm |
| 主要材料 | Connector | 连接器颜色 | Black |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Econseal J |
| 产品特性 | Econoseal J Series | 制造商全称 | EconosealJMarkII(+)Series |
环境参数
| 工作温度 | -30C to 105C | ||
