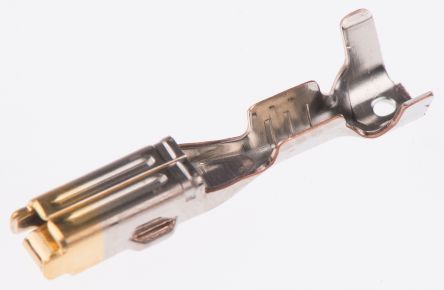

点击放大查看
171630-5
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONTACT SKT CRIMP 20-24AWG GOLD Econoseal J Mk II crimp socket contact Automotive Connectors E-J MK-2070 REC CONT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.20-0.60² [24-20] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 1.40 - 2.41 mmPhosphor Bronze Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip EconosealJMkIIcrimpsocketcontact TE Connectivity E-J MK-2 070 REC CONT |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | ||
机械参数
| 深度 | 5 mm | 间距 | Not Required mm |
| 腔体A | 6 | 锁定类型 | 无尖刃主体 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 铜 |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Gold | 安装样式 | Wire |
| 连接器样式 | 180° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 16.5 mm |
| 包装数量 | 6000 | 主要材料 | AutomotiveConnectorAccessory |
| 端接排数 | 压接 | 触点数 | 1 POS |
| 接触件端接 | Crimp | 绝缘直径 | 1.5 – 2.2 mm [ .055 – .094 in ] |
| 接触件表面处理 - 配合 | 金 (Au) | 法兰上方插针尺寸 | 1.8 mm [ .071 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 可密封 | 是 | 制造商全称 | EconosealJMarkII(+)Series |
| 端口数 | 1 Port | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -22 – 221 |
