点击放大查看

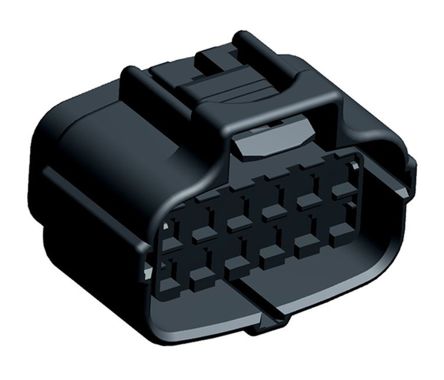

174661-2
| 制造商 | |
| 描述 | Conn Housing PL 12 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN PLUG HOUSING 12POS BLACK 12 way Econoseal J Mk II plug housing Automotive Connectors 12 POS PLUG MK II Conn Housing PL 12 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 12Housing Type = PlugPolyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip HOUSING, ECONOSEAL, 12WAY 12wayEconosealJMkIIplughousing TE Connectivity Econoseal J Mk II+, 070 系列 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Econoseal J Series | ||
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 间距 | 4.8 mm | 宽度 | 40.6mm |
| 高度 | 33.2mm | 重量 | 0.004 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 排间距 | 0.220" (5.60mm) | 端接方式 | Crimp |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | PBT |
| 总长度 | 40.6 mm | 主要材料 | Connector |
| 端接样式 | Crimp | 连接器颜色 | Black |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Econoseal J 070 |
| 制造商全称 | EconosealJMarkII(+)Series | ||
