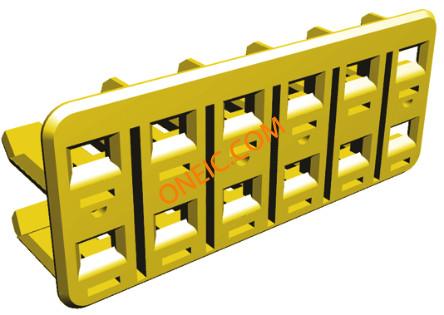

174662-7

制造商	TE Connectivity Ltd.
描述	Connector Accessories PL 12 POS 4.8 mm Double-Lock Plate Polybutylene Terephthalate Yellow Automotive Connectors 12 POS PLUG MARK II+ Econoseal J Series [Mark II (+)] CONN PLUG DBL LOCK 12POS YELLOW 12 W Econoseal J Mk II double lock plate Connector Accessories PL 12 POS 4.8 mm Double-Lock Plate Polybutylene Terephthalate Yellow Product Highlights:Double-Lock PlateNumber of Positions = 12Housing Type = PlugPolyester Body MaterialColor = YellowSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip 12WEconosealJMkIIdoublelockplate TE Connectivity 锁板 12 POS PLUG MARK II+
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

产品	Housings	产品类别	Automotive Connectors
标准包装数量	Bulk	工厂包装数量	500

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94V-2

机械参数

颜色	黄色	深度	10.1 mm
高度	12.3 mm	材料（通用）	PBT
包装方式	Bulk	触头类型	Plug
连接器类型	Lock Plate	总长度	29 mm
包装数量	100	主要材料	AutomotiveConnectorAccessory
位数	12

产品信息

类型	Lock Plate	连接器性别	Male
系列	EconoSeal J Mark II 070, AMP	可维修	是
制造商全称	EconosealJMarkII(+)Series	附件类型	Lock Plate
射频系列/标准	174662	适用产品/相关产品	EconoSeal Series J

环境参数

工作温度

-30 – 105 °C [ -22 – 221 °F ]
