点击放大查看

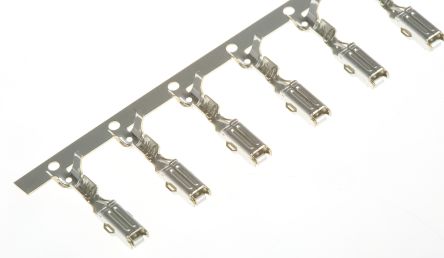

171630-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONTACT SKT CRIMP 20-24AWG TIN Econoseal J Mk II crimp socket contact Automotive Connectors E-J MK-2 070 REC CON Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.20-0.60² [24-20] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 1.40 - 2.41 mmBrass Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip CONTACT, SOCKET, AWG24-20 CONTACT, CRIMP, SOCKET, 24-20AWG, REEL EconosealJMkIIcrimpsocketcontact TE Connectivity 触点 E-J MK-2 070 REC CONT |
| 分类 |
商业参数
| 产品 | Terminals | 其他名称 | A104955CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 深度 | 5 mm | 间距 | Not Required mm |
| 高度 | 3.4 mm | 重量 | 0.004 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Crimp | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 16.5 mm |
| 第一触头极性 | :Socket | 触点数 | 1 POS |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | :070 | 产品特性 | Econoseal J Series [Mark II (+)] |
| 附件类型 | Contact | 端口数 | 1 Port |
| 适用产品/相关产品 | :AMP-ECONOSEAL Connector | ||
环境参数
| 工作温度 | -30C to 105C | 结工作温度 | 105C |
