点击放大查看

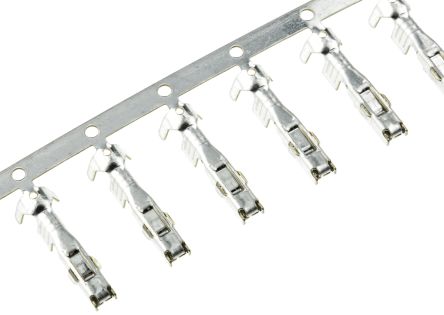

171662-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONN RECEPT 16-20AWG CRIMP TIN Econoseal J Mk II crimp socket contact Automotive Connectors E-J MK-2 070 REC CON Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 2.00 - 2.59 mmBrass Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip CONTACT, CRIMP, RECEPTACLE, 20-16AWG CONTACT, CRIMP, SOCKET, 20-16AWG, REEL EconosealJMkIIcrimpsocketcontact TE Connectivity Econoseal J [Mark II (+)] 系列 触点, 使用于连接器插头外壳 E-J MK-2 070 REC CONT |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A107020CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 深度 | 5.4 mm | 间距 | 5.94 mm |
| 高度 | 3.6 mm | 重量 | 0.005 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 16.5 mm |
| 主要材料 | AutomotiveConnectorAccessory | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | 1 POS |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 20-16 | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | Econseal J | 产品特性 | Econoseal J Series [Mark II (+)] |
| 制造商全称 | EconosealJMarkII(+)Series | 附件类型 | Contact |
| 端口数 | 1 Port | 适用产品/相关产品 | :Econoseal J MarkII+ Series Connectors |
环境参数
| 工作温度 | -30C to 105C | 结工作温度 | 105C |
