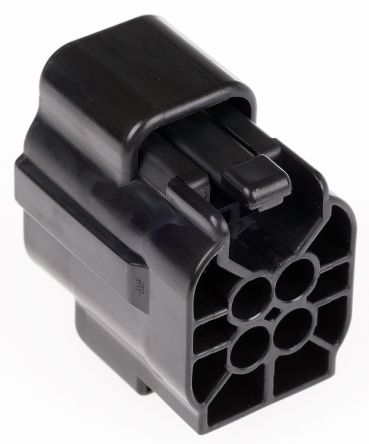

174257-2
| 制造商 | |
| 描述 | Conn Housing PL 4 POS 5.6mm Crimp ST Econoseal J Series [Mark II (+)] CONN PLUG HOUSING 4POS BLACK 4 way Econoseal J Mk II plug housing Jones Plugs & Sockets HSG PLG 1X04C F/H Conn Housing PL 4 POS 5.6mm Crimp ST Product Highlights:HousingNumber of Positions = 4Housing Type = PlugPolyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip HOUSING, RECEPTACLE, ECONOSEAL, 4WAY 4wayEconosealJMkIIplughousing TE Connectivity Econoseal J Mk II+ 系列 2行 4路 黑色 公 外壳 ECONOSEAL-J MK-2 PLUG ASSY 4P |
| 分类 |
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 间距 | 5.6 mm | 宽度 | 20.6mm |
| 高度 | 29.3mm | 重量 | 0.02 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 排间距 | 0.220" (5.60mm) | 端接方式 | Crimp |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Plug | 排数 | 2 |
| 锁定特性 | :Latch | 本体材料 | :PBT (Polybutylene Terephthalate) |
| 壳体材料 | PBT | 主要材料 | Connector |
| 连接器颜色 | Black | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :- |
| 制造商全称 | EconosealJMarkII(+)Series | 适用产品/相关产品 | :Econoseal Mark II+ Contacts, Double Lock Plates |
