点击放大查看

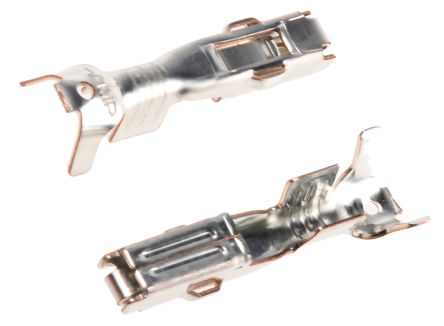

171662-4
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONN RCPT 20-16AWG PRE-TIN Econoseal J Mk II crimp socket contact Automotive Connectors 070SERIES REC CONTCT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 2.00 - 2.59 mmPhosphor Bronze Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip EconosealJMkIIcrimpsocketcontact TE Connectivity 070 SERIES REC CONTACT |
| 分类 |
商业参数
| 产品 | Terminals | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | ||
机械参数
| 腔体A | 10 | 锁定类型 | 无尖刃主体 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 铜 |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Wire |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 连接器样式 | 180° | 触头材料 | Phosphor Bronze |
| 包装数量 | 6000 | 主要材料 | AutomotiveConnectorAccessory |
| 端接排数 | 压接 | 接触件端接 | Crimp |
| 绝缘直径 | 2 – 2.5 mm [ .078 – .102 in ] | 接触件表面处理 - 配合 | 锡 (Sn) |
| 法兰上方插针尺寸 | 1.8 mm [ .071 in ] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | CrimpContact | 连接器性别 | SKT |
| 系列 | 070 | 可密封 | 是 |
| 制造商全称 | EconosealJMarkII(+)Series | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -22 – 221 |
文档与媒体
