点击放大查看

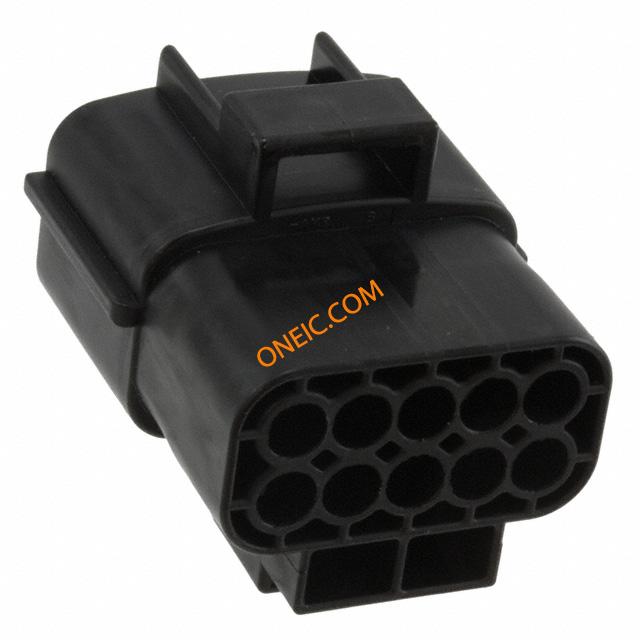

174657-2
| 制造商 | |
| 描述 | Conn Housing RCP 10 POS 4.8mm Crimp ST Econoseal J Series [Mark II (+)] CONN CAP HOUSING 10POS BLACK 10W Econoseal J Mk II receptacle housing Heavy Duty Power Connectors HSG CAP 1X10C F/H Conn Housing RCP 10 POS 4.8mm Crimp ST Product Highlights:HousingNumber of Positions = 10Housing Type = Receptacle (Cap)Polyester Body MaterialColor = BlackSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip HOUSING, RECEPTACLE, ECONOSEAL, 10WAY 10WEconosealJMkIIreceptaclehousing TE Connectivity Econoseal J Mk II+ 系列 2行 10路 黑色 母 外壳 10 POS. CAP MK II + |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 深度 | 36.5mm |
| 间距 | 4.8 mm | 宽度 | 33.7mm |
| 高度 | 30.7mm | 重量 | 0.02 |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 排间距 | 0.220" (5.60mm) | 端接方式 | DoubleLock |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 2 | 插入力 | Female |
| 锁定特性 | :Latch | 本体材料 | :PBT (Polybutylene Terephthalate) |
| 壳体材料 | PBT | 总长度 | 33.7 mm |
| 主要材料 | Receptacle | 连接器颜色 | Black |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 070 |
| 制造商全称 | EconosealJMarkII(+)Series | 产品子类型 | Connectors |
| 适用产品/相关产品 | :Econoseal Mark II+ Contacts, Double Lock Plates | ||
