770981-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers 09P SL156 HSG W/LR,W/O #3,4,7 Headers & Wire Housings 09P SL156 HSG W/LR W/O #3 4 7 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Locking Ramp | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | 3.96 [0.156] | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 锁定特性 | Locking Ramp | 壳体材料 | Nylon |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 制造商全称 | AMP | 产品子类型 | SL-156 Housings |
| 应用细节 | Wire-to-Board | ||
文档与媒体
相关型号
3-640252-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg brass H/F Strip Headers & Wire Housings SKT 24-18 BR/SN Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, FEMALE, 24AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 045 POST CONT 0126PTPBR
640252-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings RCPT CONTACT 18-24G Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 24-18AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP SL-156 RECEPTACLE
640707-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Crimp Receptacle 24-18AWG SL-156 Headers & Wire Housings CRIMP CONTACT SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNLP,SL156RECEPTACLELP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 SL 156 RECEPTACLE LP
770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNST,SL156RECPT,SNNI/PHBZ SL156 RECPT, SNNI/PHBZ
3-770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg phosphor D/W Strip Headers & Wire Housings SKT 24-18 PHBR/SN Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, MTA, 24-18AWG CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; tape; 3.96mm TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 SL156 RECPT, SNNI/PHBZ
770476-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 GOLD Contact female 0.2-0.9mm² SL-156 Headers & Wire Housings SOCKET 24-18 AWG Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀金镀镍触点 SL156 RECPT, AUNI/PHBZ
350980-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Heavy Duty Power Connectors CRIMP CONTACT SL 156 MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Conn Contact F 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPTACLE

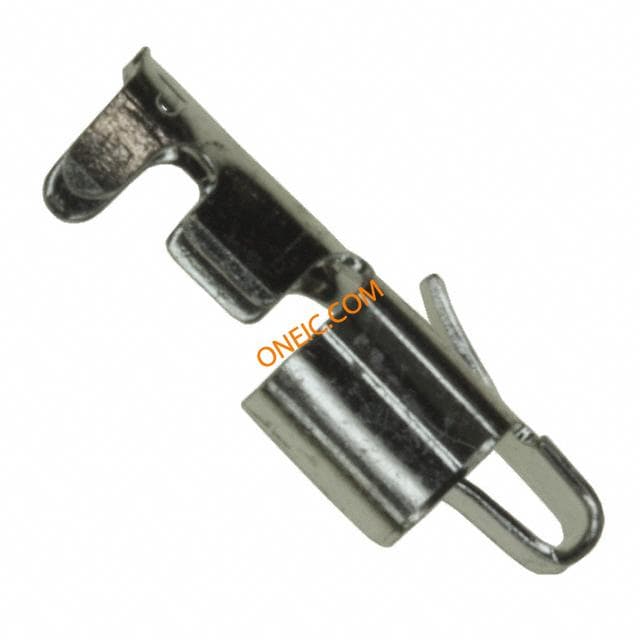

770522-1
