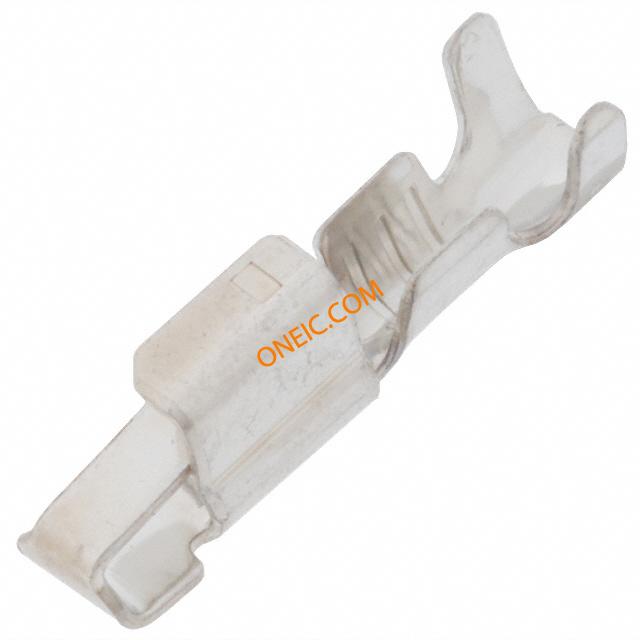

3-770522-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece SL-156 CST-100 and EP Connectors CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings CRIMP CONTACT BULK 18-24 AWG Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156Contact,24-18AWG,HighUnmatingForce,Crimp SL156 HOODED CONTACT, LP LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 0.9-0.2² [18-24] | 端接方式 | Crimp |
| 触头类型 | Signal | 触点形状 | Hooded |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Bright Tin Over Nickel | 壳体镀层 | Nickel |
| 插入件材料 | 磷青铜 | 插入力 | Low Force |
| 操作力 | High | 触头材料 | Phosphor Bronze |
| 包装数量 | Loose Piece | 主要材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 端接表面处理 | 带有 | 接触件端接 | Crimp |
| 绝缘直径 | 2.79 | 镀层厚度（通用） | 锡 |
| 兼容外壳尺寸（如TM-700等） | SL-156 护套 | 触头长度-柱 | 电源 |
| 端子螺钉表面处理 | 亮光 | 典型触点布局 | SL-156 Contacts |
| 接触镀层厚度 | 80µin (2.03µm) | 触点材料 - 配合 | Bright Tin |
| 护套（绝缘）厚度 | 1.27 µm, 50 µin | ||
产品信息
| 制造商 | .2 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | SL-156 |
| 制造商全称 | Tyco Electronics | 产品子类型 | Contacts |
| 适用产品/相关产品 | SL-156 Housings | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
