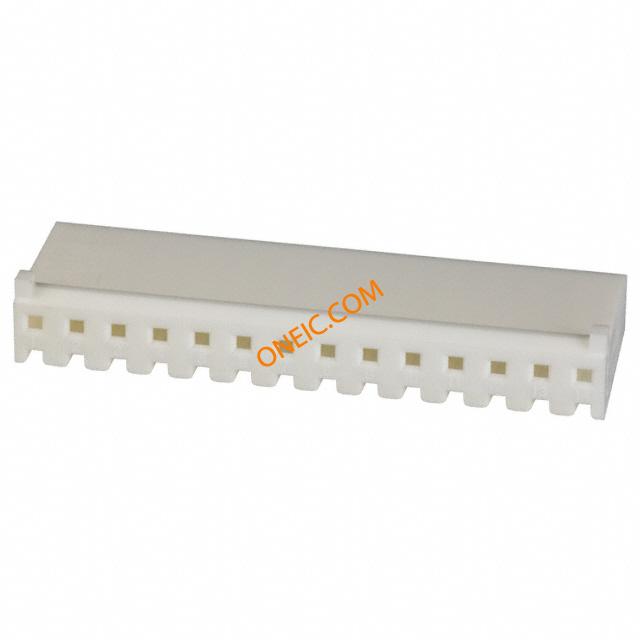

1-770849-4

点击放大查看

1-770849-4

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS W/RAMP SL156 Headers & Wire Housings 14P SL156 HSG W/LCK RAMP W/TABS Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P SL156 HSG W/LOC RAMP W/TBS
分类
连接器解决方案矩形连接器电源混合矩形连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级已获认证
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

供电电压250 VAC连接器阻抗压接
最大额定电流6.5

机械参数

颜色Natural间距3.96 mm
包装方式Bulk遮蔽类型No
壳体颜色自然出线方向180°
导线线规18-24 AWG触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色White安装类型Straight
连接器类型Crimp接触镀层3.96 [0.156]
紧固类型Locking Ramp安装样式不带
排数1外壳材料（壳体）标准
连接器用途Receptacle高度（英寸）.25
锁定特性Locking Ramp壳体材料Nylon
总长度2.183安装特性Without
包装数量1面板安装类型Without
端接样式Crimp第一触头极性Socket (Female)
配接方向With触点数14
端接表面处理不带接触件端接Crimp
绝缘直径Standard位数14
兼容外壳尺寸（如TM-700等）SL .156 端子安装孔直径带有
典型触点布局同轴静电放电屏蔽不带

产品信息

备注Recommended contact: Part No. 350980 and Part No. 770476类型Housing
连接器性别RCP系列SL-156
产品特性Polarizing Key可密封否
制造商全称AMP产品子类型SL-156 Housings
应用细节Wire-to-Board

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
