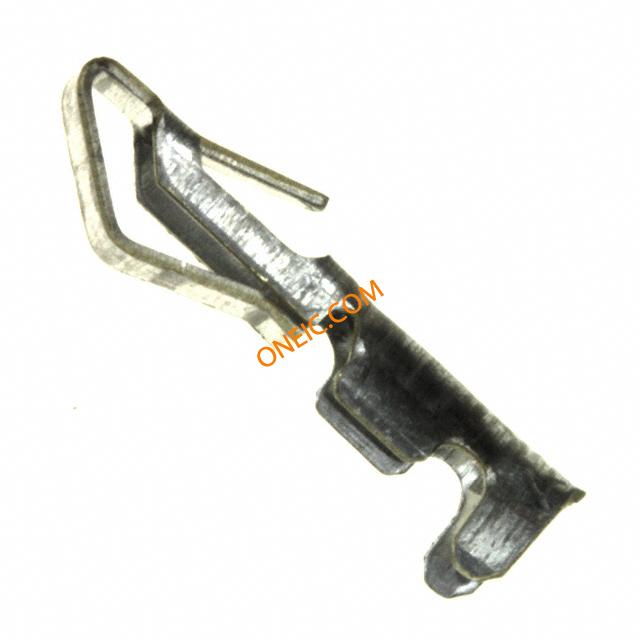

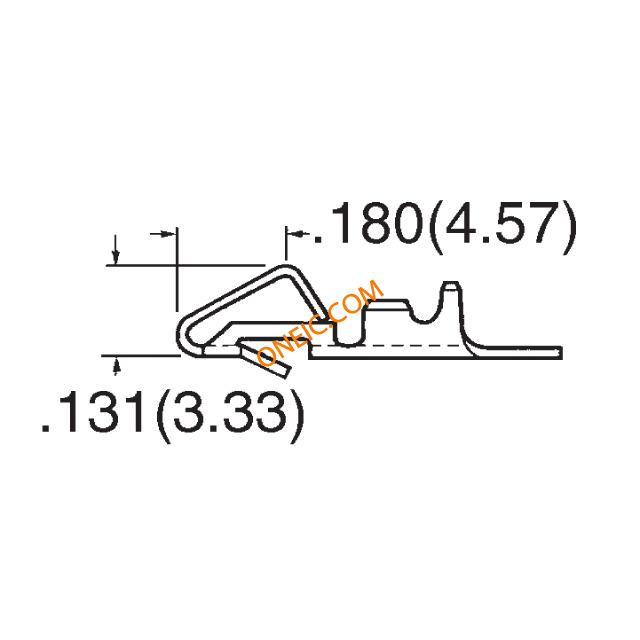

640706-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Heavy Duty Power Connectors CRIMP CONTACT 18-24G MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Crimp Receptacle 24-18AWG SL-156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Plating, Mating Area, MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP MTAConnectorContact;SL-156Contacts;Brass;Pre-Tin;18to24AWG;0.11in. Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; in bulk TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT .045 POST PT BRASS |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | RoHScompliant,ELVcompliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 3mΩ | 最大额定电流 | 10 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.56 mm | 间距 | Not Required mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 0.9-0.2² [18-24] | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Power |
| 柱间距 | 3.96mm | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 封装形式 | in bulk |
| 插入力 | Female | 操作力 | High |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 2.79 [0.110] | 接触镀层厚度 | 130µin (3.30µm) |
| 线规或范围 - AWG | 24-18 | 线规或范围 - mm² | 0.2...0.9mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 3000 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | 640 |
| 制造商全称 | AMPBrand | 产品子类型 | Receptacle Contacts |
| 适配器系列 | SL-156 | 单元数量 | 21000 |
| 适用产品/相关产品 | SL-156 Housings | ||
环境参数
| 工作温度 | +105°C | ||
相关型号
