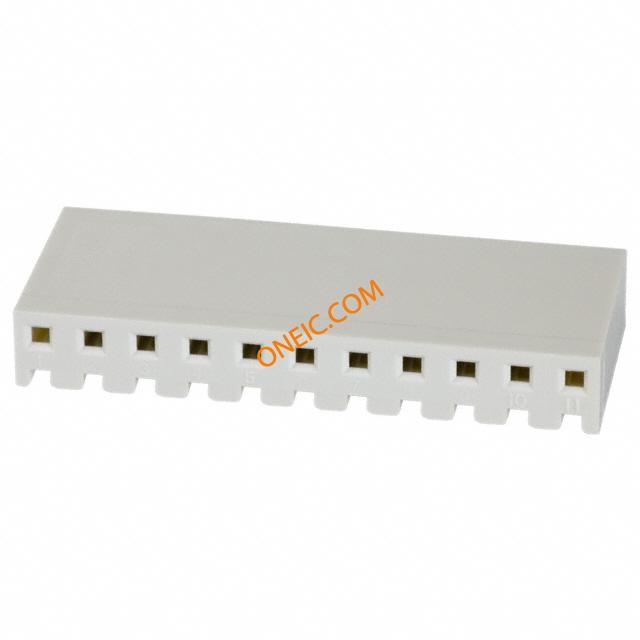

1-640251-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 11 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 11POS W/O RAMP SL-156 Headers & Wire Housings HSG REC 1X11C STD Conn Housing RCP 11 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 11Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P SL156 HSG W/O LCK RAMP |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 压接 |
| 最大额定电流 | 10/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 16.76 mm |
| 间距 | 3.96 mm | 高度 | 6.35 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 自然 | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 安装样式 | Wire | 排数 | 1 |
| 外壳材料（壳体） | 标准 | 连接器用途 | Receptacle |
| 高度（英寸） | 6.35 | 壳体材料 | Nylon |
| 总长度 | 43.56 mm | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 11 |
| 端接表面处理 | 不带 | 接触件端接 | Crimp |
| 绝缘直径 | Standard | 位数 | 11 |
| 兼容外壳尺寸（如TM-700等） | SL .156 端子 | 安装孔直径 | 不带 |
| 典型触点布局 | 3.96 [0.156] | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
