1-640387-1

制造商	TE Connectivity Ltd.
描述	Conn Wire to Board HDR 11 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 11POS .156 TIN Headers & Wire Housings 11P MTA156 HDR ASSY Conn Wire to Board HDR 11 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 HDR ASSY SQ R/A
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	CSA档案号	LR7189
标准编号	CSA, UL	CSA认证	Certified
UL阻燃等级	UL 94V-0	材料阻燃等级	UL 94 V-0

电气参数

额定电压	600 V	开关功能	Friction Lock
供电电压	600	接触电阻	3 mohm
最大额定电流	7 A	最小供电电压	600VAC

机械参数

颜色	Natural	深度	17.32 mm
间距	3.96 mm	高度	7.62 mm
长度	43.59 mm [ 1.716 in ]	密封型	Not Sealed
包装方式	Bulk	端接方式	Solder
触头类型	Male Pin	外壳颜色	White
安装类型	Through Hole, Right Angle	连接器类型	Header, Unshrouded
接触镀层	Tin	触点时序	Without
紧固类型	Friction Lock	安装样式	Through Hole
引脚数	11	排数	1
封装形式	Plug	壳体镀层	Nickel
插入件材料	铜合金	触头材料	Copper Alloy
壳体材料	Polyester	总长度	43.59 mm
包装数量	500	面板安装类型	通孔 - 焊接
端接样式	Through Hole	第一触头极性	Pin (Male)
触点数	11	位数	11
兼容外壳尺寸（如TM-700等）	MTA .156 连接器组件或 SL .156 连接器组件	安装孔直径	不带
接触件表面处理 - 配合	锡	典型触点布局	直插式
接触长度 - 配合	0.400" (10.16mm)	端子柱长度	3.18 mm
接触镀层厚度	2.54 µm [ 100 µin ]	静电放电屏蔽	不带
直角致动器长度	Rear	护套（绝缘）厚度	50 µm [ 1.27 µin ]

产品信息

类型	Wire to Board	连接器性别	HDR
系列	MTA-156	产品子类型	Headers
应用细节	Wire-to-Board	加载位置数	All

环境参数

测试温度	标准件 - 非灼热丝	工作温度	-55C to 105C
封装热阻	.063 mm [ 1.6 in ]

文档与媒体

在线文档

1-640387-1

相关型号

4-640433-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS 22AWG MTA156 Headers & Wire Housings REC 11P C/E 22AWG Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 CONN ASSY 22AWG RED

¥2.3120

详情

1-640435-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS MTA-156 26AWG

详情

1-640606-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS 22AWG MTA156

¥2.4480

详情

1-644461-1

te connectivity / amp

Conn IDC Connector RCP 11 POS 3.96mm IDT RA Cable Mount CONN RECEPT 11POS MTA-156 18AWG

详情

暂无图片

1-644464-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings OBSOLETE CONN RECEPT 11POS MTA-156 24AWG

详情

1-640605-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS MTA-156 20AWG

详情

1-644472-1

te connectivity / amp

Conn IDC Connector RCP 11 POS 3.96mm IDT RA Cable Mount CONN RECEPT 11POS 24AWG MTA156

详情

4-640432-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS 20AWG MTA156 Headers & Wire Housings 11P MTA156 CONN ASSY 20AWG YEL Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 CONN ASSY 20AWG YEL

¥2.3120

详情

4-640435-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings 11 POS RECPT 26 AWG CLOSED END MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS 26AWG MTA156 Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 CONN ASSY 26AWG LF

¥2.3120

详情

4-644472-1

te connectivity / amp

Conn IDC Connector RCP 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS 24AWG MTA156

详情

1-644470-1

te connectivity / amp

Conn IDC Connector RCP 11 POS 3.96mm IDT RA Cable Mount CONN RECEPT 11POS MTA-156 20AWG

详情

1-640433-1

te connectivity / amp

Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings IDC RECEPTACLE 11P MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS MTA-156 22AWG Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application

¥2.4480

详情

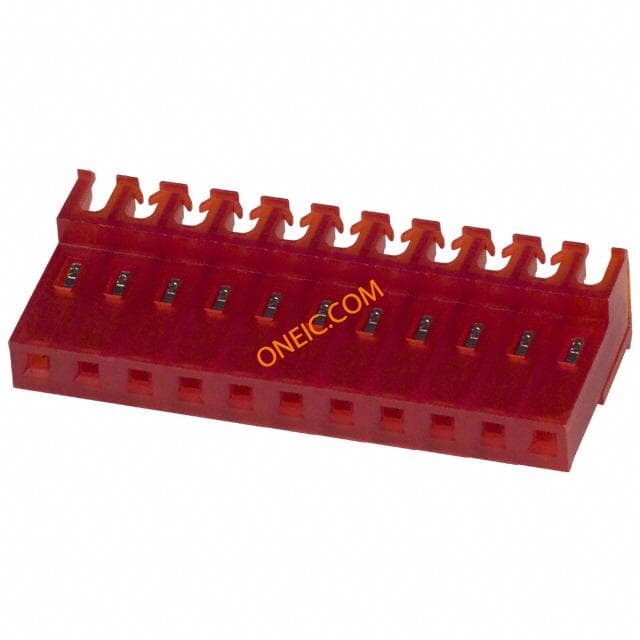

4-640606-1
