640707-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Crimp Receptacle 24-18AWG SL-156 Headers & Wire Housings CRIMP CONTACT SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNLP,SL156RECEPTACLELP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 SL 156 RECEPTACLE LP |
| 分类 |
商业参数
| 其他名称 | A19992 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 接触电阻 | 3mΩ | 最大额定电流 | 10 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.56 mm | 间距 | 3.96 mm |
| 包装方式 | Bulk | 导线线规 | 0.9-0.2² [18-24] |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Bright Tin Over Nickel |
| 安装样式 | Free Hanging | 插入力 | Low Force |
| 操作力 | Low | 触头材料 | Brass |
| 壳体材料 | Not Required | 包装数量 | Loose Piece |
| 触点数 | 9 | 接触件端接 | Crimp |
| 绝缘直径 | 2.79 [0.110] | 接触镀层厚度 | 80µin (2.03µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | SL-156 | CAD图纸 | 3D CAD Model |
| 产品子类型 | SL-156 Contacts | 端口数 | 1 Port |
| 适用产品/相关产品 | SL-156 Housings | ||
环境参数
| 工作温度 | +105°C | 结工作温度 | 105C |
相关型号
770981-9
te connectivity / amp
Conn Housing RCP 9 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers 09P SL156 HSG W/LR,W/O #3,4,7 Headers & Wire Housings 09P SL156 HSG W/LR W/O #3 4 7 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
91598-1
te connectivity / amp
Assembly Tools, Certi Crimp II Tool Crimpers CERTICRIMP 24-20 AWG SAHT SL156 TOOL CRIMP 18-24AWG .043-.075 Connector Accessories Terminals Crimp Tool CRIMP TOOL,TYCO 1318143 SERIES TERMINALS Crimper;SAHTRatchet;24-18AWG;SL-156Receptacles;CERTI-CRIMPII CERTICRIMP 2, SAHT SL156
1-770996-2
te connectivity / amp
Connector Accessories SL-156 Housings 12 POS 3.96mm Receptacle MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .156 W/TABS Headers & Wire Housings 12P SL 156HSG W/TABS W/O LR Connector Accessories SL-156 Housings 12 POS 3.96mm Receptacle Product Highlights:SL-156 HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P SL 156 HSG W/TABS W/O LR
1-640250-8
te connectivity / amp
Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18 POS W/RAMP SL-156 Headers & Wire Housings SL156 HSG W/LCK RMP Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 Housings18 PositionsMating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P SL156 HSG W/LCK RAMP NATL
58614-1
te connectivity / amp
PROCRIMP, HT&D SL156 Crimpers PRO CRIMPER SL156 CRIMP TOOL W/ DIE SET Crimper;Ratchet;24-18 AWG;Rectangular Pro Crimper Hand Crimping Tool Assembly CRIMP TOOL, HAND, 24-20AWG Crimper;Ratchet;24-18AWG;RectangularSL156Series;58614-2Die;PRO-CRIMPERIII PRO-CRIMPER* III Hand Crimping Tool TE Connectivity Pro-Crimper III 系列 手工压接工具 , 24 → 18 AWG 线规格
1-770849-3
te connectivity / amp
Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS W/RAMP SL156 Headers & Wire Housings HSG REC 1X13C STD RAMP/TAB Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing13 PositionsHousing Type = ReceptacleSL-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P SL156 HSG W/LCK RMP & TABS
1-640251-4
te connectivity / amp
Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS W/O RAMP SL156 Headers & Wire Housings 14P RECEPTACLE Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P SL156 HSG W/O LCK RAMP
647402-3
te connectivity / amp

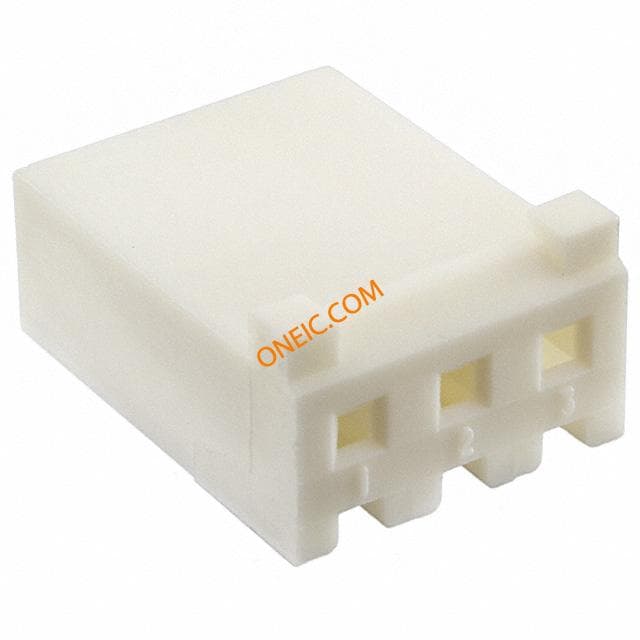

Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 03P SL156 HSG W/RMP&TABS,OVSZ Headers & Wire Housings 3P HSG W/RMP&TABS OVSZ SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
