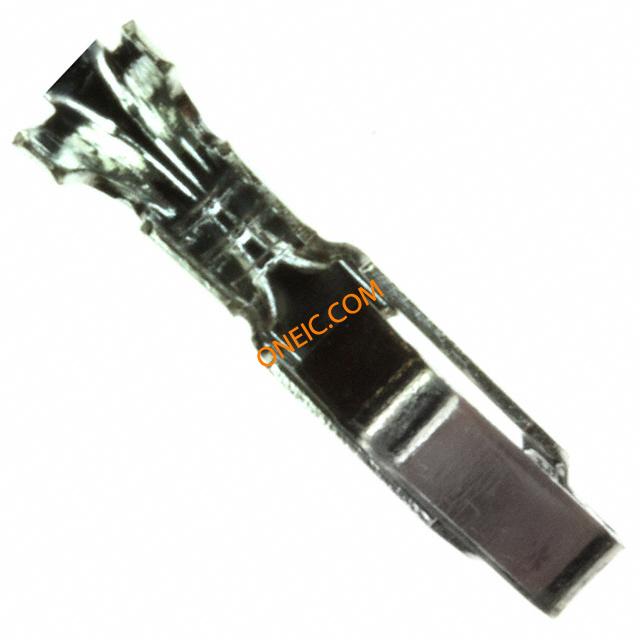

350980-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Heavy Duty Power Connectors CRIMP CONTACT SL 156 MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Conn Contact F 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPTACLE |
| 分类 |
商业参数
| 其他名称 | A19992TR | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 30,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 连接器阻抗 | 压接 | 最大额定电流 | 4 A |
机械参数
| 包装方式 | Reel | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 0.9-0.2² [18-24] | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Bright Tin-Lead Over Nickel |
| 壳体镀层 | Nickel | 箔压接区域 | .2 |
| 插入件材料 | 黄铜 | 插入力 | Low Force |
| 操作力 | Low | 触头材料 | Brass |
| 包装数量 | Strip | 绝缘高度 | Yes |
| 端接样式 | Crimp | 端接表面处理 | 带有 |
| 接触件端接 | Crimp | 绝缘直径 | 2.79 [0.110] |
| 镀层厚度（通用） | 锡 | 兼容外壳尺寸（如TM-700等） | SL-156 护套 |
| 触头长度-柱 | 电源 | 端子螺钉表面处理 | 亮光 |
| 接触镀层厚度 | 80µin (2.03µm) | 护套（绝缘）厚度 | 1.27 µm, 50 µin |
产品信息
| 备注 | Recommended for 13 thru 24 position housings; any position acceptable. | 连接器性别 | SKT |
| 系列 | SL-156 | 产品子类型 | SL-156 Contacts |
| 其他规格 | 低力度 | 适用产品/相关产品 | SL-156 Housings |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
