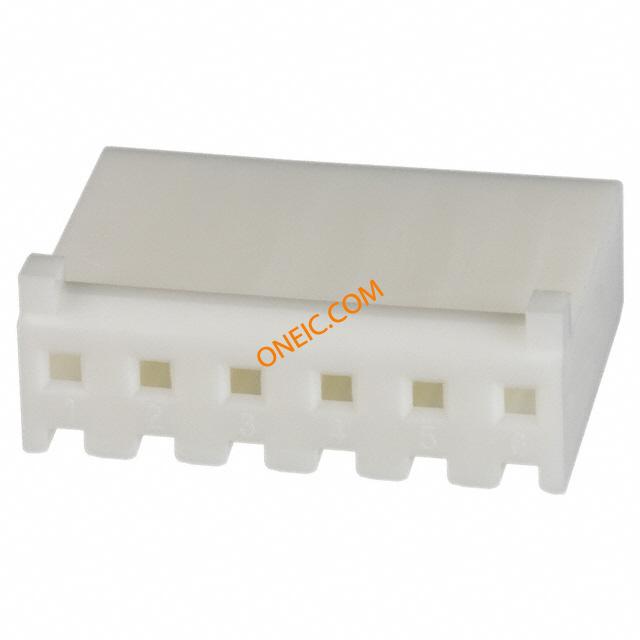

770849-6

点击放大查看

770849-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS W/RAMP SL156 6w housing with polarising tabs Headers & Wire Housings 06P SL156 HSG W/LCK Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM 06PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 电缆安装 压接连接器外壳 06P SL156 HSG W/LCK RMP & TABS
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free process认证机构CSA,UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - SL-156 Series开关功能Locking Ramp
最大额定电流10/Contact A

机械参数

颜色Natural深度16.76mm
间距3.96 mm长度23.7mm
重量0.002包装方式Bulk
遮蔽类型No出线方向180°
导线线规18-24 AWG触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色White安装类型Straight
行程角度Straight连接器类型Crimp
接触镀层3.96 [0.156]紧固类型Locking Ramp
安装样式Free Hanging排数1
连接器用途Receptacle锁定特性Locking Ramp
触头材料:-壳体材料Nylon
总长度23.7 mm安装特性Without
包装数量500面板安装类型Without
主要材料WiretoBoard插针孔直径0.156"
端接样式Crimp第一触头极性Socket (Female)
配接方向With触点数6
接触件端接Crimp绝缘直径Standard
位数6

产品信息

备注Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2.类型Housing
连接器性别RCP系列SL-156
产品特性Polarizing KeyCAD图纸3D CAD Model
制造商全称AMP产品子类型SL-156 Housings
应用细节Wire-to-Board适用产品/相关产品Wire-to-Board Economy Power Connector
