640384-6

点击放大查看

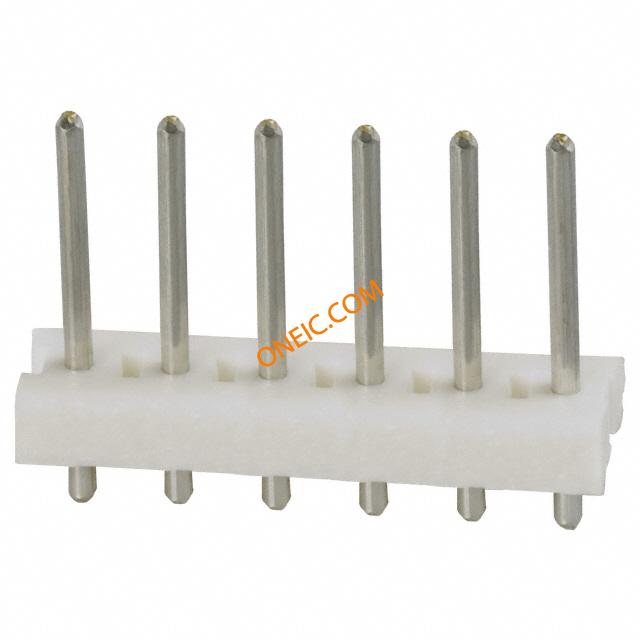

640384-6

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Round post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:6 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY STR RND SN
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
长度23.77 mm [ .936 in ]密封型Not Sealed
包装方式Bulk端接方式Solder
触头类型Male Pin安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Tin Over Nickel
触点时序Without安装样式不带
引脚数6排数1
封装形式Plug壳体镀层Nickel
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester包装数量1000
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数6
位数6兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm接触镀层厚度15
静电放电屏蔽不带

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
封装热阻1.6 mm [ .063 in ]
