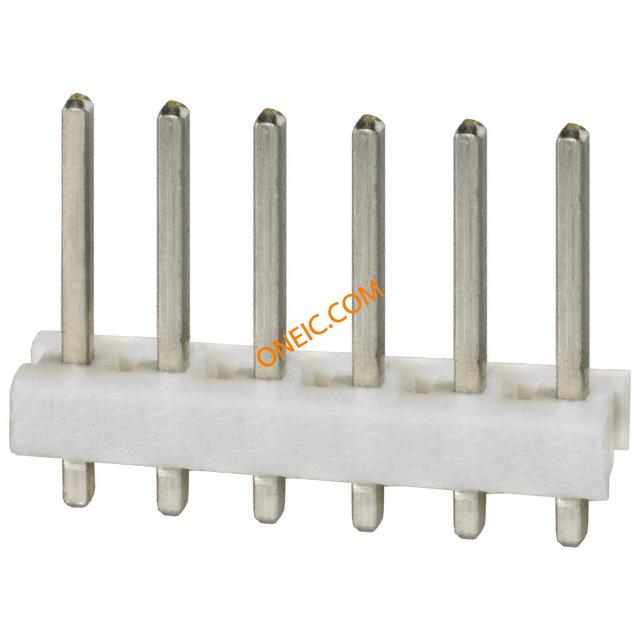

640383-6

点击放大查看

640383-6

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White 06P MTA156 HDR ASSY STR SQ SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant标准UL94V-0HousingFlammabilityRating,RoHSCompliant,ELVCompliant
UL等级获得认可零件状态E28476
认证机构CSA,ULCSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
长度23.77 mm [ .936 in ]密封型Not Sealed
包装方式Bulk导线线规26-18
端接方式Solder触点形式Male Pin
触头类型Male Pin引脚长度（针脚）0.125"
外壳颜色White安装类型Through Hole
行程角度Straight连接器类型Header, Unshrouded
接触镀层Tin Over Nickel触点时序Without
安装样式PCBMount引脚数6
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度0.936"包装数量1000
面板安装类型通孔 - 焊接主要材料InterconnectSystem
插针孔直径0.156"端接样式Through Hole
第一触头极性Pin (Male)板面高度0.400" (10.16mm)
触点数6绝缘直径0.095"(SingleWire),0.07"(MassTerminationWires)
位数6兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
中心触点镀层工艺0.156in.柱体长度（配合）0.125in.
安装孔直径0.07"接触件表面处理 - 配合锡
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm接触镀层厚度3.81 – 8.89 µm [ 150 – 350 µin ]
静电放电屏蔽不带每排/每行位置数All

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156产品特性IDC,Pinstrip
制造商全称MTA-156Series产品子类型Headers
输出配置Through Hole应用细节Wire-to-Board
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55to+105°C
封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
