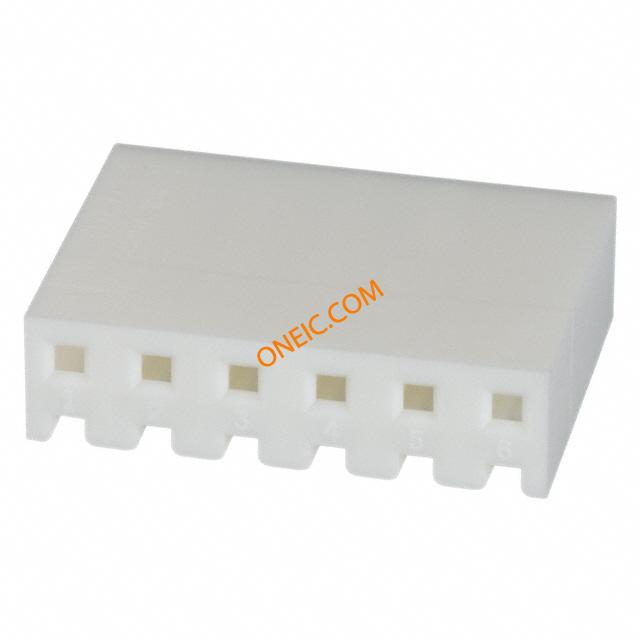

640251-6

点击放大查看

640251-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 6POS W/O RAMP SL-156 Headers & Wire Housings SL-156 HOUSING 6P Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM SL-156POSTCONHG,06PSL156HSGW/OLCKRAMP 06P SL156 HSG W/O LCK RAMP
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - SL-156 Series开关功能Unlatched
最大额定电流10/Contact A最小供电电压250VAC

机械参数

颜色Natural深度16.76 mm
间距3.96 mm高度6.35 mm
重量0.002包装方式Bulk
遮蔽类型No出线方向180°
导线线规18-24 AWG触头类型Female Socket
第二连接器Without外壳颜色White
安装类型Straight连接器类型Crimp
接触镀层:-安装样式Free Hanging
排数1连接器用途Receptacle
触头材料:-壳体材料Nylon
总长度23.7 mm安装特性Without
面板安装类型Without主要材料InterconnectSystem
端接样式Crimp第一触头极性Socket (Female)
配接方向Without触点数6
接触件端接Crimp绝缘直径Standard
位数6典型触点布局3.96 [0.156]

产品信息

备注Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2.类型Housing
连接器性别RCP系列SL-156
制造商全称AMP产品子类型SL-156 Housings
应用细节Wire-to-Board

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
TE.Connect?C=1&PN=640251-6&M=BYPN&LG=1&I=13
在线文档
640251-6

相关型号

640445-6

640445-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 6WAY Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:6 Pin header straight 6P, 640445-6, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY FL/STR SN

¥1.0584
详情
3-641208-6

3-641208-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector6 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 3.96MM MTA-156HEADERGOLD,06PMTA156HDRASSYFLSTLF 06P MTA156 HDR ASSY FL ST LF

¥5.3280
详情
641210-6

641210-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR RA 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HRD FL RA FB 30AU

¥7.0560
详情
644751-6

644751-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings 6P HDR ASSY R/A 06P MTA156 HDR ASSY R/A

¥1.4400
详情
640383-6

640383-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White 06P MTA156 HDR ASSY STR SQ SN

¥1.2312
详情
644753-6

644753-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings HDR 06P VRT F-LOCK RD Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY RN STR F/L

¥1.4465
详情
641208-6

641208-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR STR 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY FL ST 30AU

¥9.7920
详情
3-641120-6

3-641120-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL/ST LF Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY FL/ST LF

¥4.6426
详情
暂无图片

641121-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .156 15GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL/RA 15AU Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥7.8480
详情
暂无图片

644611-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings 06P MTA156 HDR POL STR WO PEGS 06P MTA156 HDR POL STR WO PEGS 06P MTA156 HDR POL STR WO PEGS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥7.4880
详情
640385-6

640385-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY SQ R/A

¥1.5120
详情
644759-6

644759-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings 6P HEADER ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD

详情
暂无图片

641207-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .156 30GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL RA 30AU 06P MTA156 HDR ASSY FL RA 30AU 06P MTA156 HDR ASSY FL RA 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.1992
详情
640389-6

640389-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 6WAY Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 6P, 640389-6, TE Connectivity TE Connectivity MTA-156 系列 6路 3.96mm节距 (1排) 直角 PCB 针座 , 焊接端接, 7A, 通孔 06P MTA156 HDR ASSY SQ R/A F/L

¥1.6466
详情
暂无图片

644767-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD 06P MTA156 HDR ASSY FL ST 15AU 06P MTA156 HDR ASSY FL ST 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.5440
详情
640384-6

640384-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Round post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:6 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY STR RND SN

¥1.1592
详情
644752-6

644752-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings 6P MTA156 HEADER Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 3.96MM MTA-156HEADER-TIN,06PMTA156HDRASSYSQSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY SQ STR F/L

¥1.1592
详情
644617-6

644617-6

TE Connectivity / AMP

Headers & Wire Housings 06P MTA156 HDR ASSY PO RA FB SN MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .156 TIN

¥3.7152
详情
644756-6

644756-6

TE Connectivity / AMP

Headers & Wire Housings 06P MTA156 HDR ASSY STR SQ AU MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD

详情

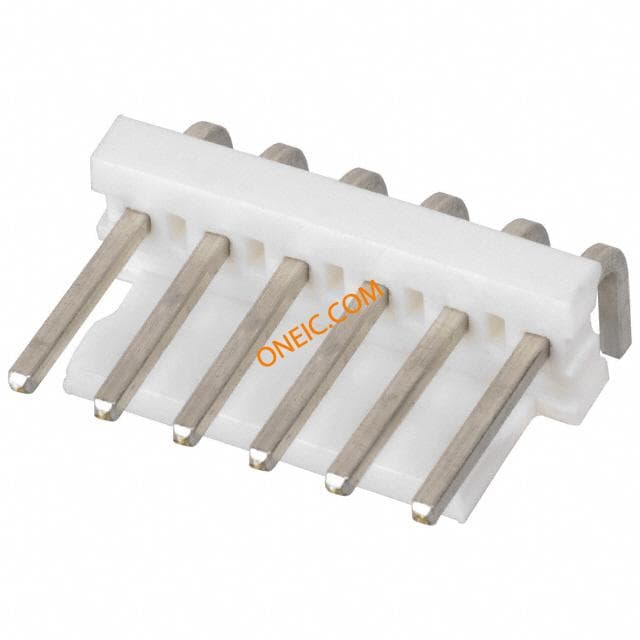

640387-6
