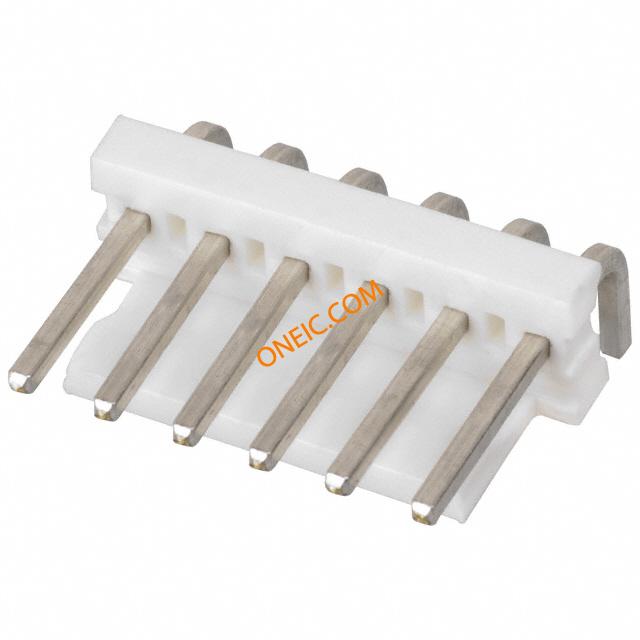

640387-6

点击放大查看

640387-6

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings POLARIZED HDR RA 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600接触电阻3 mohm
最大额定电流7 A最小供电电压600VAC

机械参数

颜色Natural深度17.32 mm
间距3.96 mm高度7.62 mm
长度23.77 mm [ .936 in ]密封型Not Sealed
包装方式Bulk方向直角
端接方式Solder触头类型Male Pin
外壳颜色White安装类型Through Hole, Right Angle
连接器类型Header, Unshrouded接触镀层Tin Over Nickel
触点时序Without紧固类型Friction Lock
安装样式Through Hole引脚数6
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度23.77 mm包装数量1500
面板安装类型通孔 - 焊接端接排数焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数6位数6
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触长度 - 配合0.400" (10.16mm)端子柱长度3.18 mm
接触镀层厚度100 µm [ 2.54 µin ]静电放电屏蔽不带
直角致动器长度Rear

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156覆盖范围无覆盖
产品子类型Headers应用细节Wire-to-Board
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
封装热阻1.6 mm [ .063 in ]

相关型号

3-644566-6

3-644566-6

te connectivity / amp

Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG MTA-156 Headers & Wire Housings 06P MTA156 CONN ASSY 22AWG LF Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 CONN ASSY 22AWG LF

¥1.5368
详情
640433-6

640433-6

te connectivity / amp

Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings CLOSED W/O TABS 6P Red 22 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA156 Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Product Highlights:Connector6 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 CONN ASSY 22AWG RED

¥1.3668
详情
640251-6

640251-6

te connectivity / amp

Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 6POS W/O RAMP SL-156 Headers & Wire Housings SL-156 HOUSING 6P Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM SL-156POSTCONHG,06PSL156HSGW/OLCKRAMP 06P SL156 HSG W/O LCK RAMP

¥0.4896
详情

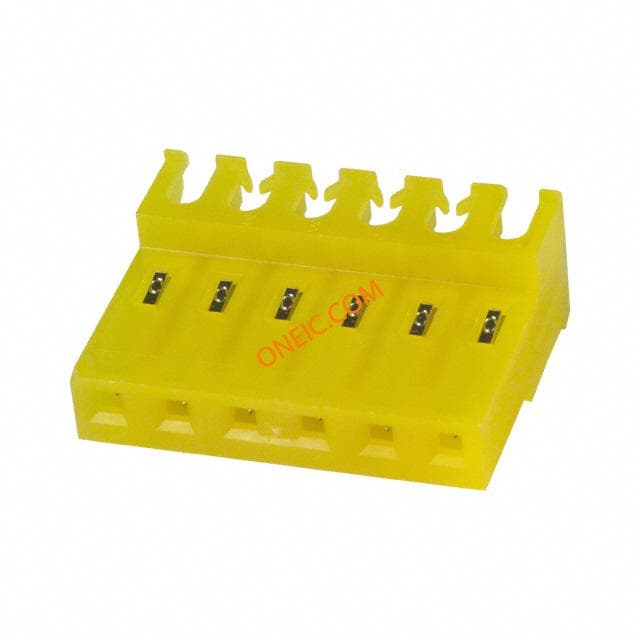

640605-6
