3-640434-6

点击放大查看

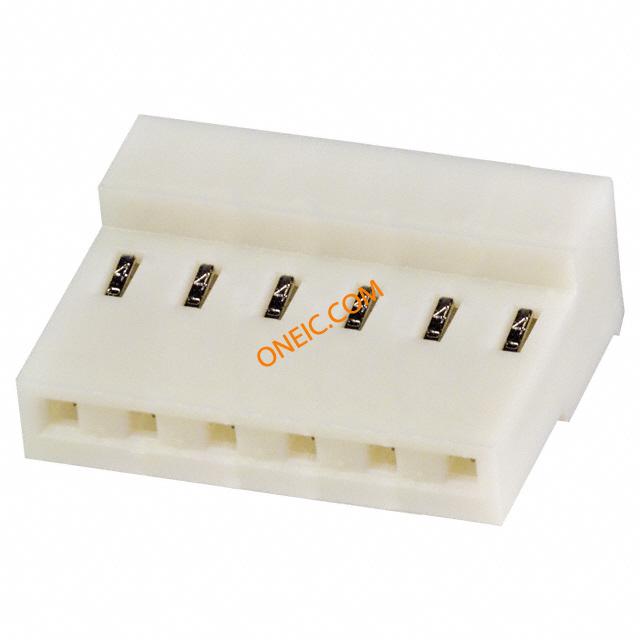

3-640434-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA156 Headers & Wire Housings 6 POS RECPT 24 AWG CLOSED END 3-640434-6 06P MTA156 CONN ASSY 24AWG WHT
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量25

合规参数

RoHSNot applicable / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗刺破式压接 (IDC)最大额定电流7 A

机械参数

颜色White间距3.96 mm
高度9.02 mm [ .355 in ]长度23.77 mm [ .936 in ]
密封型Not Sealed包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线导线线规24 AWG
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel触点时序Without
安装样式Wire引脚数6
排数1封装形式Receptacle
壳体镀层Nickel外壳材料（壳体）标准外形
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon包装数量250
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数6接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数6
兼容外壳尺寸（如TM-700等）MTA .156 公端安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有
护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
产品子类型Connector Assemblies安装类型Closed End
输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
