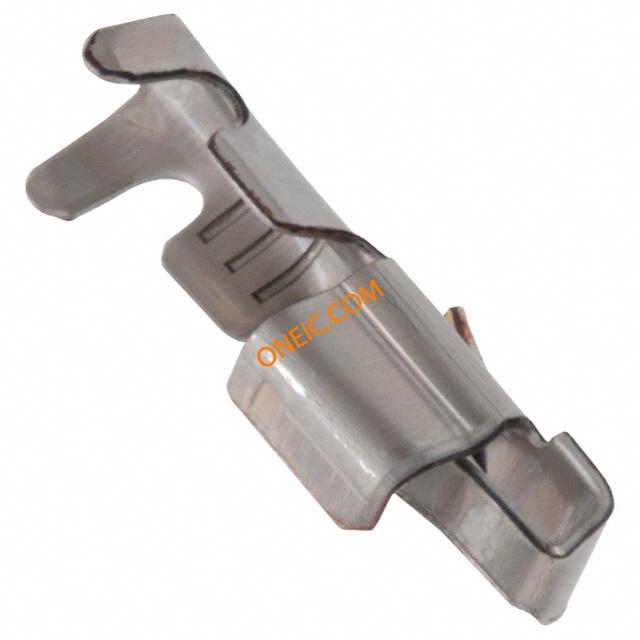

770476-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 GOLD Contact female 0.2-0.9mm² SL-156 Headers & Wire Housings SOCKET 24-18 AWG Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀金镀镍触点 SL156 RECPT, AUNI/PHBZ |
| 分类 |
商业参数
| 零件号别名 | 640706-1 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 5,500 | 工厂包装数量 | 5500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 250 V | 接触电阻 | 3mΩ |
| 最大额定电流 | 6.5 A | 最小供电电压 | 250VAC |
机械参数
| 深度 | 3.94 mm | 间距 | Not Required mm |
| 高度 | 4.7 mm | 重量 | 0.002 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 0.9-0.2² [18-24] |
| 端接方式 | Crimp | 触头类型 | Signal |
| 触点形状 | Hooded | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 插入力 | Low Force |
| 操作力 | High | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 包装数量 | Strip |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 2.79 [0.110] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | SL-156 | 产品子类型 | SL-156 Contacts |
| 适用产品/相关产品 | SL-156 Housings | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
640251-8
te connectivity / amp
Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 8POS W/O RAMP SL-156 Headers & Wire Housings 08P SL156 HSG W/O LC Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;8;Crimp;180deg;Nylon;SL-156Housings;0.156in. SL-156 8 Position Crimp Free Hanging Receptacle Housing 08P SL156 HSG W/O LCK RAMP
770849-2
te connectivity / amp
Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS W/RAMP SL156 2 w housing with polarising tabs Headers & Wire Housings 2P RECP HSG SL-156 Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 3.96MM 02PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳 02P SL156 HSG W/LCK RMP & TABS
770981-9
te connectivity / amp
Conn Housing RCP 9 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers 09P SL156 HSG W/LR,W/O #3,4,7 Headers & Wire Housings 09P SL156 HSG W/LR W/O #3 4 7 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-770996-2
te connectivity / amp
Connector Accessories SL-156 Housings 12 POS 3.96mm Receptacle MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .156 W/TABS Headers & Wire Housings 12P SL 156HSG W/TABS W/O LR Connector Accessories SL-156 Housings 12 POS 3.96mm Receptacle Product Highlights:SL-156 HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P SL 156 HSG W/TABS W/O LR
640251-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 6POS W/O RAMP SL-156 Headers & Wire Housings SL-156 HOUSING 6P Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM SL-156POSTCONHG,06PSL156HSGW/OLCKRAMP 06P SL156 HSG W/O LCK RAMP
1-640250-8
te connectivity / amp
Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18 POS W/RAMP SL-156 Headers & Wire Housings SL156 HSG W/LCK RMP Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 Housings18 PositionsMating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P SL156 HSG W/LCK RAMP NATL
1-770849-3
te connectivity / amp
Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS W/RAMP SL156 Headers & Wire Housings HSG REC 1X13C STD RAMP/TAB Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing13 PositionsHousing Type = ReceptacleSL-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P SL156 HSG W/LCK RMP & TABS
1-640251-4
te connectivity / amp
Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS W/O RAMP SL156 Headers & Wire Housings 14P RECEPTACLE Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P SL156 HSG W/O LCK RAMP
770849-8
te connectivity / amp
Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS W/RAMP SL156 Headers & Wire Housings SL156 RECPT HSG 8P Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 3.96MM 08PSL156HSGW/LCKRMP&TABS 08P SL156 HSG W/LCK RMP & TABS
770849-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS W/RAMP SL156 6w housing with polarising tabs Headers & Wire Housings 06P SL156 HSG W/LCK Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM 06PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 电缆安装 压接连接器外壳 06P SL156 HSG W/LCK RMP & TABS
647402-3
te connectivity / amp

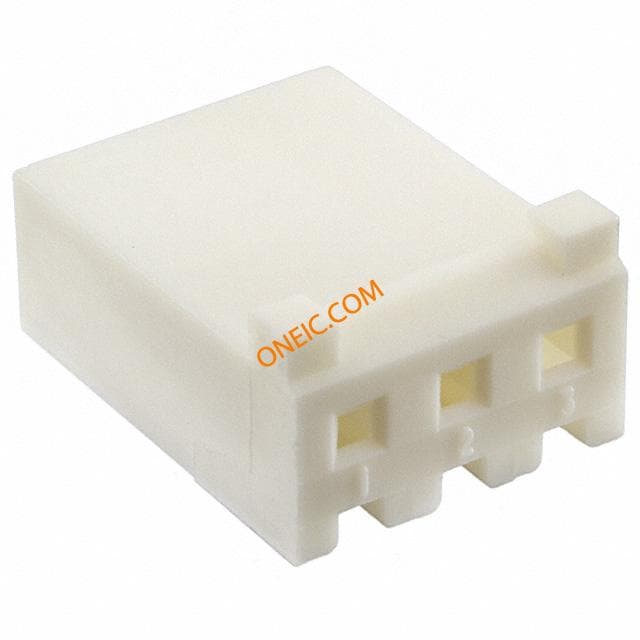

Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 03P SL156 HSG W/RMP&TABS,OVSZ Headers & Wire Housings 3P HSG W/RMP&TABS OVSZ SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
