4-641208-4

点击放大查看

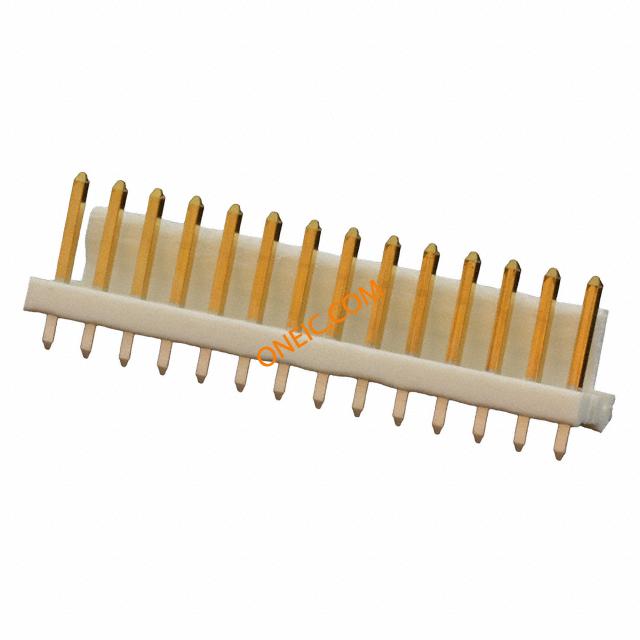

4-641208-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 14 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings FRCTN LK HDR STR 14P Square post gold MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 14POS VERT .156 GOLD 14P MTA156 HDR ASSY FL ST LF 14P MTA156 HDR ASSY FL ST LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称46412084标准包装规格250
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
高度10.8 mm [ .425 in ]长度55.47 mm [ 2.184 in ]
密封型Not Sealed包装方式Bulk
端接方式Solder触头类型Male Pin
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Gold Over Nickel触点时序Without
紧固类型Friction Lock安装样式PCB
引脚数14排数1
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
包装数量250面板安装类型通孔 - 焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数14位数14
外壳尺寸-插件插头兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合哑光
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品子类型Headers - Unshrouded
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
封装热阻1.57 mm [ .062 in ]
