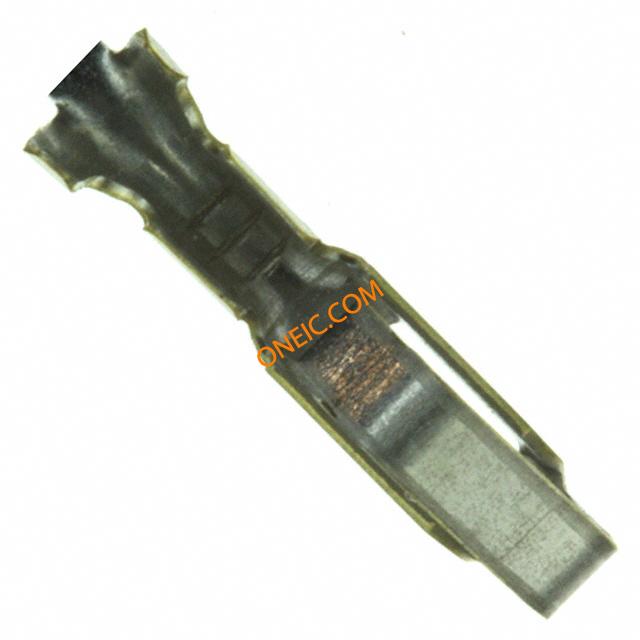

350980-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings SOCKET 24-18 AWG Reel of 6000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNST,.045POSTCONTACT .045 POST CONTACT |
| 分类 |
商业参数
| 零件号别名 | 350980-2 63900-1 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 6,000 | 工厂包装数量 | 600 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 接触电阻 | 3 mohm | 连接器阻抗 | 压接 |
| 最大额定电流 | 6.5 A | 最小供电电压 | 250VAC |
机械参数
| 深度 | 3.56 mm | 间距 | Not Required mm |
| 高度 | 5.59 mm | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 0.9-0.2² [18-24] |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 箔压接区域 | .33 | 插入件材料 | 黄铜 |
| 插入力 | Low Force | 操作力 | Low |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 包装数量 | Strip | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 端接表面处理 | 带有 |
| 接触件端接 | Crimp | 绝缘直径 | 2.79 [0.110] |
| 镀层厚度（通用） | 锡 | 兼容外壳尺寸（如TM-700等） | SL-156 护套 |
| 触头长度-柱 | 电源 | 接触镀层厚度 | 130µin (3.30µm) |
产品信息
| 备注 | Recommended for 13 thru 24 position housings; any position acceptable. | 类型 | Contact |
| 连接器性别 | SKT | 系列 | SL-156 |
| 产品子类型 | SL-156 Contacts | 其他规格 | 低力度 |
| 适用产品/相关产品 | SL-156 Housings | ||
环境参数
| 工作温度 | -55C to 105C | ||
