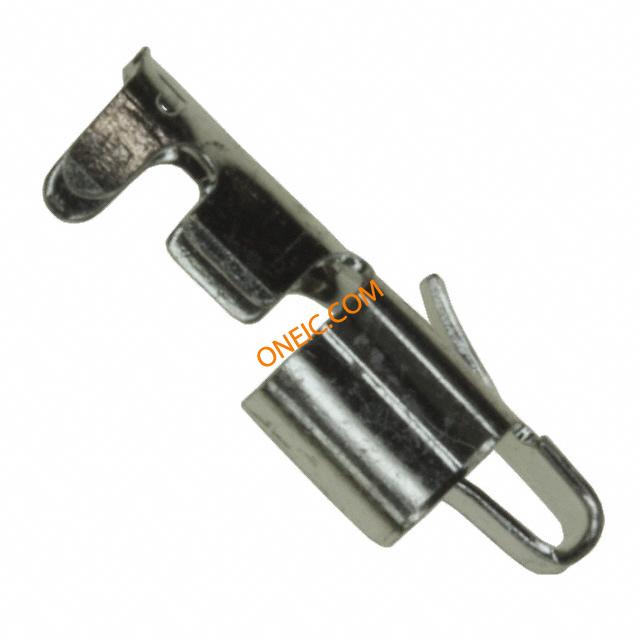

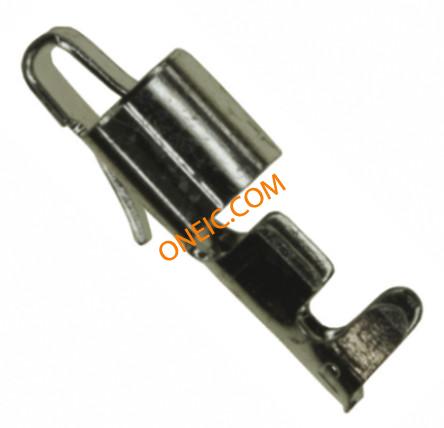

770522-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN SL-156 Socket Contact Tin 24-18 AWG Headers & Wire Housings CRIMP CONTACT BULK 18-24 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, PIN, CRIMP SL-156POSTCONNLP,SL156RECEPTSNNI/PHBZL/P SL156 RECEPT SNNI/PHBZ L/P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
电气参数
| 接触电阻 | 3 mohm | 最大额定电流 | 10 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.94 mm | 间距 | 3.96 mm |
| 高度 | 6.6 mm | 重量 | 0.24 |
| 包装方式 | Bulk | 导线线规 | 0.9-0.2² [18-24] |
| 端接方式 | Crimp | 触头类型 | Signal |
| 触点形状 | Hooded | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Bright Tin Over Nickel |
| 安装样式 | Cable | 插入力 | Low Force |
| 操作力 | High | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 包装数量 | Loose Piece |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 156 | 接触件端接 | Crimp |
| 绝缘直径 | 2.79 [0.110] | 接触镀层厚度 | 80µin (2.03µm) |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | SL-156 | 产品子类型 | SL-156 Contacts |
| 适用产品/相关产品 | SL-156 Housings | ||
环境参数
| 工作温度 | -55C to 105C | ||
