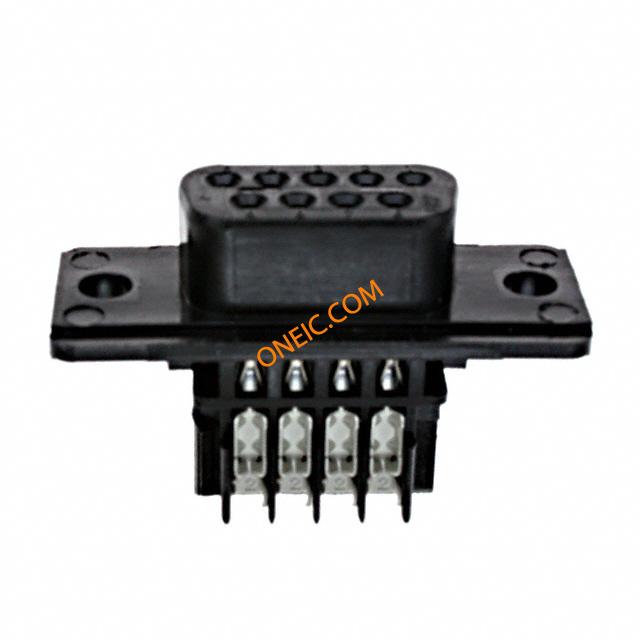

点击放大查看
745201-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.74mm IDT ST Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09S IDC 26-22 AWG Standard Cable Connectors CONN D-SUB RCPT 9POS IDC AMPLIMITE HDE-20 d-sub IDC socket,9 way Conn D-Subminiature SKT 9 POS 2.74mm IDT ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT AMPLIMITEHDE-20d-subIDCsocket,9way TE Connectivity AMPLIMITE HDE-20 系列 2.74mm 节距 9 路 IDC D-sub 连接器, 插座, 热塑性外壳 RCPT ASSY,9P,HDE,AP |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | ||
机械参数
| 颜色 | Black | 深度 | 20.92mm |
| 间距 | 2.74 mm | 宽度 | 12.92mm |
| 长度 | 30.81mm | 重量 | 0.001 |
| 包装方式 | Tray | 电缆类型 | Discrete Wire, Round Jacketed Cable |
| 外壳尺寸 | 1 | 端接方式 | IDT |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Plastic |
| 连接器样式 | D-Sub | 锁定特性 | Mounting Holes |
| 本体材料 | :Plastic | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 尺寸/外形 | 30.81 x 12.92 x 20.92mm |
| 接地凹痕 | Without | 端接样式 | IDC |
| 触点数 | 9 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 1.52 [0.060] | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 接触镀层厚度 | Flash |
| 线规或范围 - mm² | 0.15 - 0.40 [26-22] | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | All connectors are preloaded. Individual conductor strands should be larger tha | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDE-20 | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
