745547-1

点击放大查看

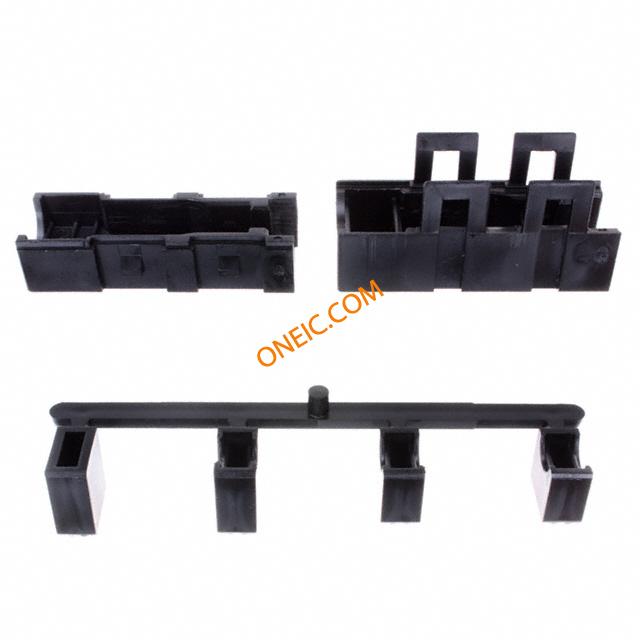

745547-1

制造商
TE Connectivity Ltd.
描述Connector Accessories Backshell/Cable Clamp Thermoplastic Individual D-Sub Backshells 9P CABLE CLAMP Cable Clamps CONN CABLE CLAMP COVER STR DB9 AMPLIMITE HDE backshell kit, size 1 Backshell/Cable Clamp 180� 1 Shell Size Thermoplastic Individual Backshell/Cable Clamp 180° 1 Shell Size Thermoplastic Individual Backshell/Cable Clamp 180° 1 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Slide-on Back Cover180° Cable Exit AngleCable Insulation Diameter = 8.38 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Backshell;Thermoplastic;for9-Pin/ShellSize1D-SubConnectors;0.33MaxCable HDE 20 KIT,CABLE CLAMP
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

交货时间70 Days子类别Backshells
产品类别D-Sub Backshells标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗180

机械参数

颜色黑色高度13.97 mm
外形尺寸(长x宽)1包装方式Bulk
屏蔽否出线方向180°
外壳尺寸1屏蔽类型No
螺纹尺寸None外壳镀层None
电缆直径0.330In.电缆材料Thermoplastic
连接器类型Cap (Cover)外壳材料（壳体）Thermoplastic
屏蔽材料无总宽度0.732in.
壳体材料Thermoplastic包装数量Individual Kit
电缆端接方式Slide-on Back Cover外径8.38 mm [ .33 in ]
绝缘直径8.38 [0.330]位数9
衬套/护套类型Without兼容外壳尺寸（如TM-700等）插头/母端
后壳材料及镀层Thermoplastic

产品信息

备注Each kit is comprised of two cover halves (F and M) and an assortment of cable类型Backshell/Cable Clamp
系列AMPLIMITE, AMP产品特性Strain Relief
主要用途Strain Relief制造商全称HDE-20Series
产品子类型Backshell/Cable Clamp附件类型Cap (Cover)
射频系列/标准745547适用产品/相关产品D-Sub Connectors Series AMPLIMITE HDE-20

文档与媒体

在线文档
745547-1?RQPN=745547-1
PDF 文档
1639165.pdf
