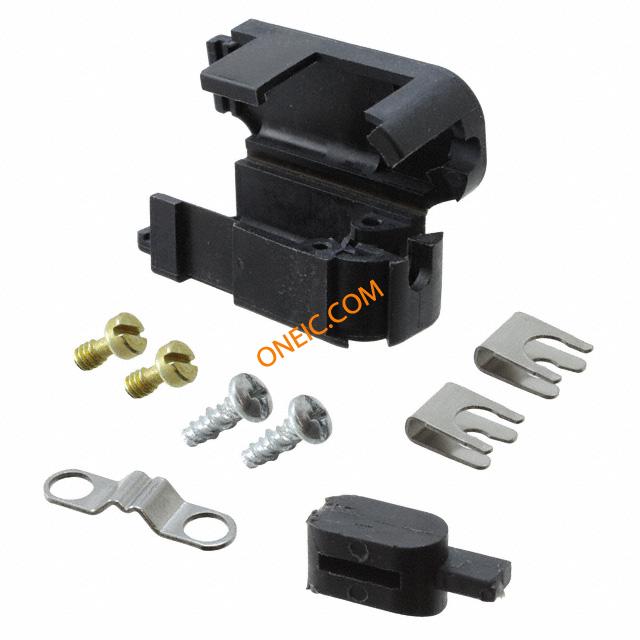

5749914-1

点击放大查看

5749914-1

制造商
TE Connectivity Ltd.
描述Connector Accessories Backshell/Cable Clamp Polypropylene Individual Kit D-Sub Backshells DSUB ACC: E CABLE CLAMP Cable Clamps CONN BACKSHELL DB9 PLASTIC Cable Clamps Product Highlights:Backshell/Cable ClampCable Clamp Type = One-Piece Quick SnapStraight(180°)/120° Cable Exit AngleCable Insulation Diameter = 1.91 - 6.35 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub 1 Piece Quick Snap Straight(180?/120?Cable Exit Angle Backshell/Cable Clamp CABLE CLAMP KIT,SZ 1,BULK PKG
分类
连接器解决方案D-Sub连接器

商业参数

交货时间70 Days子类别Backshells
标准包装规格1产品类别D-Sub Backshells
标准包装数量Bulk工厂包装数量400

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗120, 180

机械参数

颜色Black外形尺寸(长x宽)1
材料（通用）Stainless Steel包装方式Bulk
屏蔽Unshielded出线方向Straight(180°)/120°
电缆类型Round外壳尺寸1
导线线规聚丙烯屏蔽类型No
螺纹尺寸4-40外壳镀层None
线径1.91 – 6.35 mm [ .075 – .25 in ]电缆直径1.91 mm to 6.35 mm
电缆端类型Straight电缆材料Polypropylene
螺丝材料Cabon Steel外壳材料（壳体）Polypropylene
屏蔽材料无包装数量Individual Kit
电缆端接方式One-Piece Quick Snap端接样式单件式快拍相机
绝缘直径1.91 – 6.35 [0.075 – 0.250]位数9
衬套/护套类型Without电缆对数1
螺钉材料 - 镀层Zinc控制侧电缆固定器With

产品信息

备注Kit Contains: 1 Hinged Cable Clamp, 2 Self-tapping Screws, 1 Strain Relief Clip类型Backshell/Cable Clamp
产品特性Assembly Kit硬件配件Assembly Hardware, Strain Relief
产品子类型Backshell/Cable Clamp附件类型Hinged Backshell
射频系列/标准5749914适用产品/相关产品749914-1
