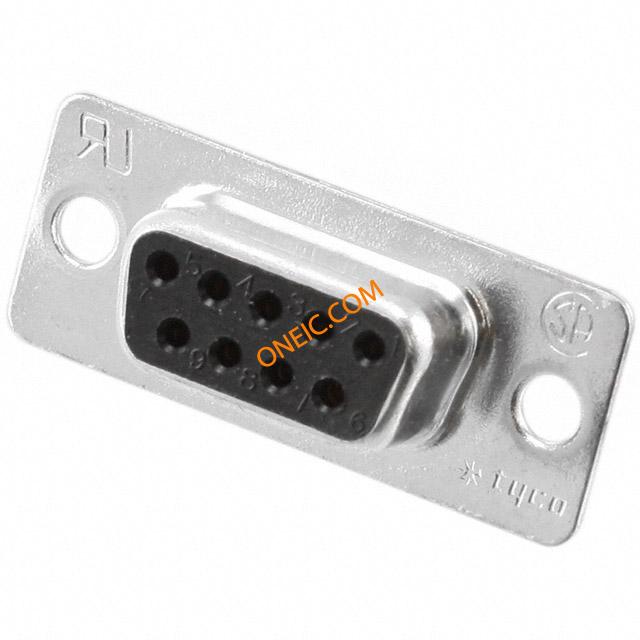

点击放大查看
5-747905-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9 Rcpt Solder Cup 9P Rcpt Solder Cup Standard Cable Connectors CONN D-SUB RCPT 9POS SLD CUP AU Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 9 Rcpt Solder Cup, 30 gold, Ro |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 连接器阻抗 | 焊接 |
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 外形尺寸(长x宽) | 1 | 包装方式 | Tray |
| 绝缘类型 | Insulated | 外壳尺寸 | 1 |
| 导线线规 | 20 | 端接方式 | Solder Cup |
| 触点尺寸 | 20 | 触头类型 | Solder Cup |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 安装类型 | Panel Mount | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 连接器类型 | Solder |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 不带 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Mounting Holes | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled | 安装特性 | 无 |
| 接地凹痕 | Without | 端接样式 | Solder |
| 触点数 | 9 | 绝缘材料 - 类型 | Thermoplastic |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 典型触点布局 | Solder Cup |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 0.5 - 0.6 [20] |
| 触点材料 - 镀层 | 热塑性 | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HD-20 |
| 预装 | 是 | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
