5745410-1

点击放大查看

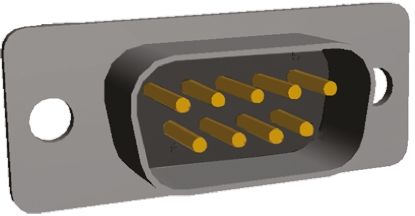

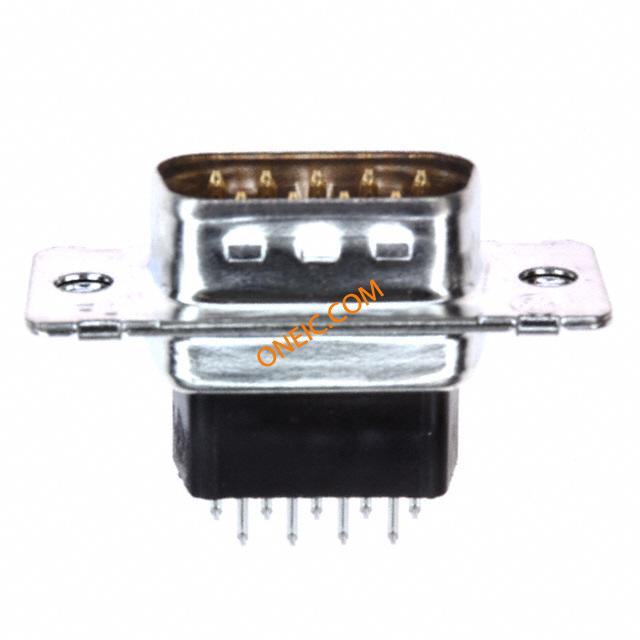

5745410-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors PLUG FULL MTL SHL 9P standard mntg holes Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU AMPLIMITE HD-20 d-sub PCB plug, 9 pin Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;FullMetalShell TE Connectivity Amplimite HD-20 系列 9 路 直向 通孔安装 PCB D-sub 连接器 插头 09 PLUG SP/MS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量17

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A最小供电电压250VDC/250VAC

机械参数

颜色Black深度0.494in
间距2.74 mm宽度0.689in
高度17.5 mm长度1.213in
密封型No外形尺寸(长x宽)1
包装方式Tube屏蔽否
壳体颜色黑色引脚样式直角
外壳尺寸1方向直
端接方式Solder触头类型Signal
柱间距.109外壳表面处理锡
第二连接器Without触点形状Square
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub插入件材料Thermoplastic
外形（宽 x 高）High触头材料Brass
壳体材料Polyamide (PA), Nylon, Glass Filled总长度30.81 mm
包装数量17面板安装类型Without
尺寸/外形0.64 [.025]接地凹痕With
端接样式Solder连接器颜色None
外径.64 mm [ .025 in ]触点数9
位数9外壳尺寸-插件Full Metal
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
触点材料 - 镀层热塑性外壳与棱镜材料否
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Grounding Indents可密封否
制造商全称AMP预装是
产品子类型连接器端口数1 Port
其他规格3.05 mm 安装孔
