747871-2

点击放大查看

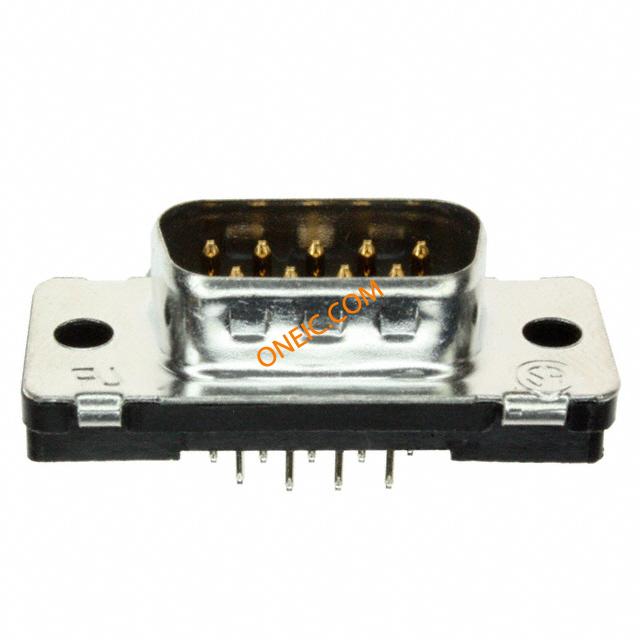

747871-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 9P standard mtng holes Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;FrontMetalShell 09 PLUG SP/FMS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量17

合规参数

RoHSNo抗辐射加固No
无铅定义Not suitable for lead free processing标准编号UL E28476
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A最小供电电压125VDC/125VAC

机械参数

颜色Black深度12.55 mm
间距2.74 mm高度11.96 mm
密封型No外形尺寸(长x宽)1
锁定类型不带包装方式Tube
壳体颜色黑色引脚样式圆形, 圆形
外壳尺寸1端接方式Solder
触点形式Signal触头类型Signal
柱间距.108外壳表面处理锡
第二连接器Without触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub插入件材料黄铜
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic总长度30.81 mm
安装特性安装孔包装数量17
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕With端接样式Solder
连接器颜色None外径.66 mm [ .026 in ]
触点数9位数9
外壳尺寸-插件Front Metal Shell安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳与棱镜材料否
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Grounding Indents可密封否
主要用途Grounding Indents制造商全称AMP
预装是产品子类型连接器
