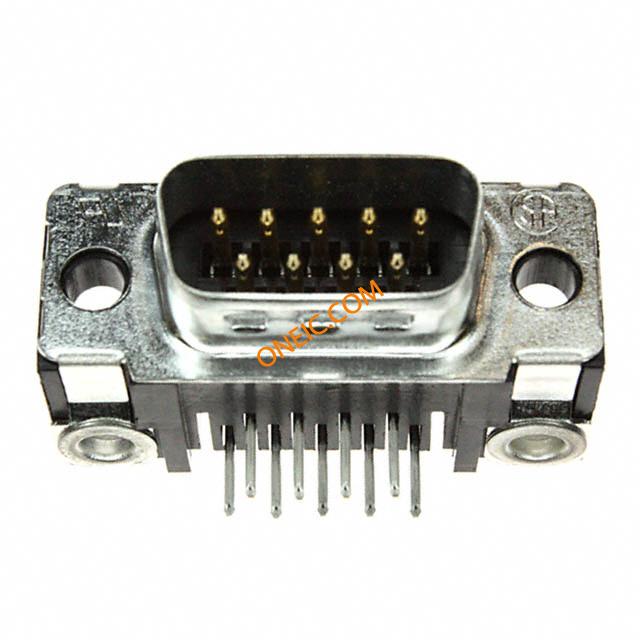

5747250-2

点击放大查看

5747250-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P RA318 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 MSFL PLUG RA 318 (FM)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量130

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A最小供电电压250VDC/250VAC

机械参数

颜色Black深度18.62 mm
间距2.74 mm高度12.55 mm
密封型No外形尺寸(长x宽)1
占位面积8.08 [.318]包装方式Tray
壳体颜色黑色引脚样式Round
外壳尺寸1端接方式Solder
触头类型Signal柱间距.108
外壳表面处理铜镀锡第二连接器Without
触点形状Round安装类型Through Hole
外壳镀层Tin over Copper连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型With尖端材料（笔尖）Tin
安装样式SMD/SMT排数2
壳体镀层锡外壳材料（壳体）Steel
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料黄铜磁芯材质黄铜
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic总长度30.81 mm
安装特性安装孔包装数量130
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕With端接样式Solder
连接器颜色None外径.66 mm [ .026 in ]
触点数9位数9
外壳尺寸-插件Front Metal Shell安装孔直径3.18 [.125]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳与棱镜材料否
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Ground Strap, Grounding Indents可密封否
预装是产品子类型连接器
端口数1 Port

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
