点击放大查看

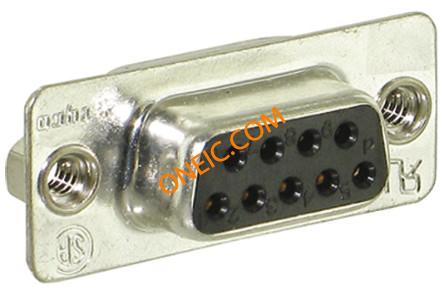

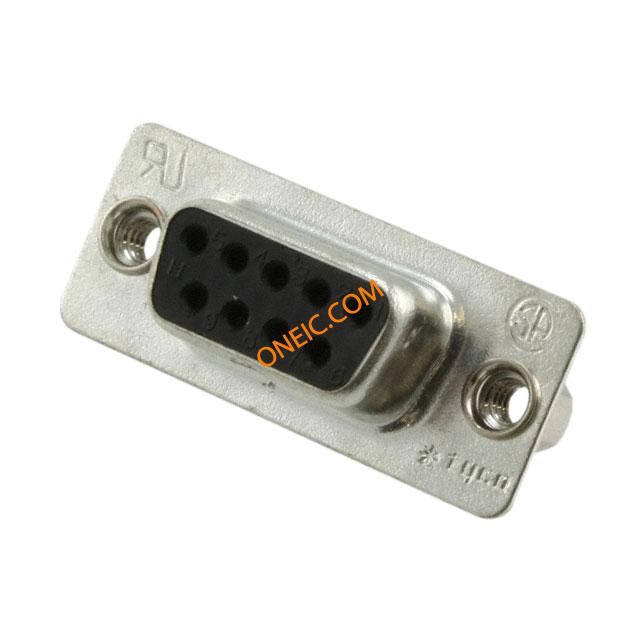

5-747905-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9 POS RECPT S/CUP Standard Cable Connectors CONN D-SUB RCPT 9POS VERT SLD AMPLIMITE HDP-20 Cable Socket solder 9P Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;CableSocket;9Pos;STR;HD-20Series;20AWG;FullMetalShell TE Connectivity Amplimite HD-20 系列 面板安装 DB9 9 路 焊接 D-sub 连接器 插座 , 250 V 交流, 3A 9 Rcpt Solder Cup, G/F w/ CN, |
| 分类 |
商业参数
| 其他名称 | 57479057 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series | 额定电压 | 250V |
| 最大额定电流 | 3A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 14.9 mm |
| 间距 | 2.77 mm | 高度 | 12.5 mm |
| 重量 | 0.005 | 包装方式 | Tray |
| 外壳尺寸 | 1 | 导线线规 | 20 |
| 端接方式 | Solder Cup | 触点尺寸 | 20 |
| 触头类型 | Solder Cup | 第二连接器 | With |
| 基体材料 | :Steel | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Solder | 接触镀层 | Gold |
| 法兰特征 | Board Side (4-40) | 外壳涂层 | Tin |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Clinch Nut, 4-40 UNC |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled | 总长度 | 30.8 mm |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Solder | 触点数 | 9 |
| 接触件端接 | :Solder | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 8µin (0.20µm) | 线规或范围 - AWG | 0.5 - 0.6 [20] |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | Female | 系列 | HD-20 (Solder Cup) |
| 制造商全称 | HD-20 | 产品子类型 | Connector |
| 端口数 | 1 Port | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
