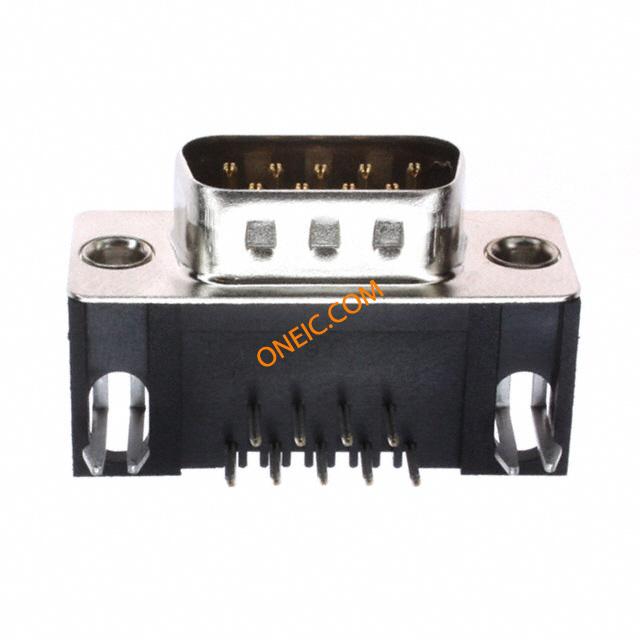

点击放大查看
1734352-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors HD20 9P 318 RA PLUG AU FLSH Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS GOLD/FL AMPLIMITE HD-20 d-sub PCB plug, 9 pin Conn D-Subminiature PIN 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;RTAng;HD-20Series;20AWG;FullMetalShell |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 990 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 250V |
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Black | 深度 | 18.4mm |
| 间距 | 2.77 mm | 宽度 | 12.5mm |
| 高度 | 12.5 mm | 长度 | 30.8mm |
| 密封型 | No | 包装方式 | Bulk |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | SPCC | 电路板厚度 | 0.062 [1.57] |
| 连接器样式 | D-Sub | 锁定特性 | Threaded Insert, 4-40 UNC |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 30.8 mm | 包装数量 | Tray |
| 面板安装类型 | Without | 尺寸/外形 | 30.8 x 12.5 x 18.4mm |
| 接地凹痕 | With | 外形尺寸 长x宽x高 | 8.08 [.318] |
| 端接样式 | Solder | 连接器颜色 | None |
| 触点数 | 9 | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Nickel Plated |
| 端子柱长度 | 3.20 [0.126] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HD-20 | 产品特性 | Board Lock, Grounding Indents |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 端口数 | 1 Port | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | -55°C ~ 105°C |
